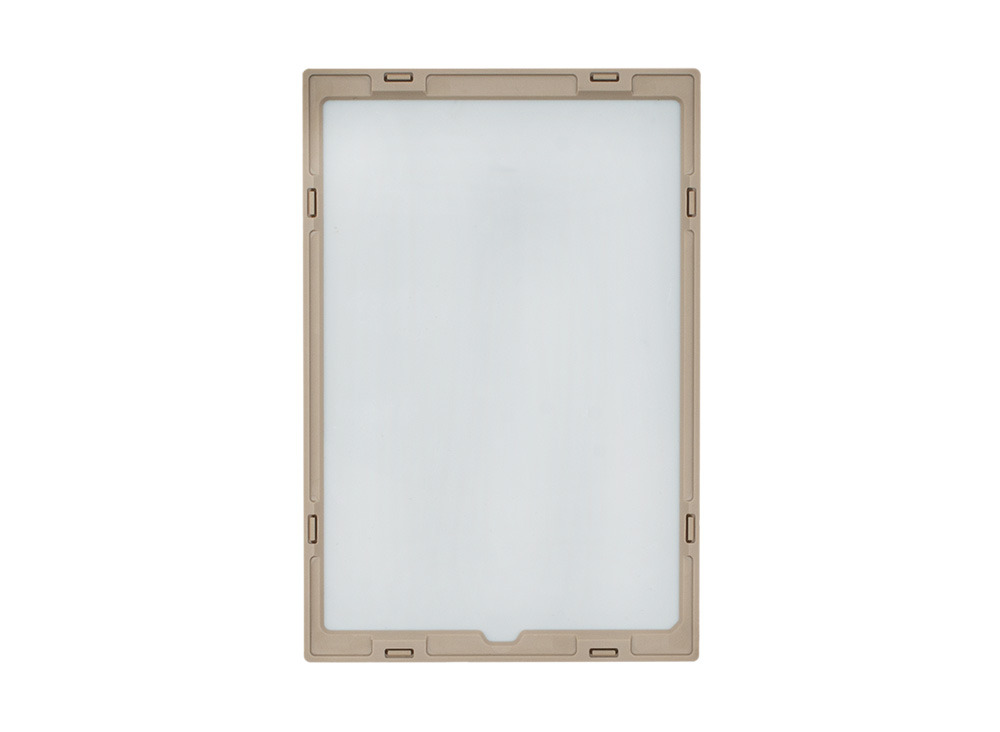

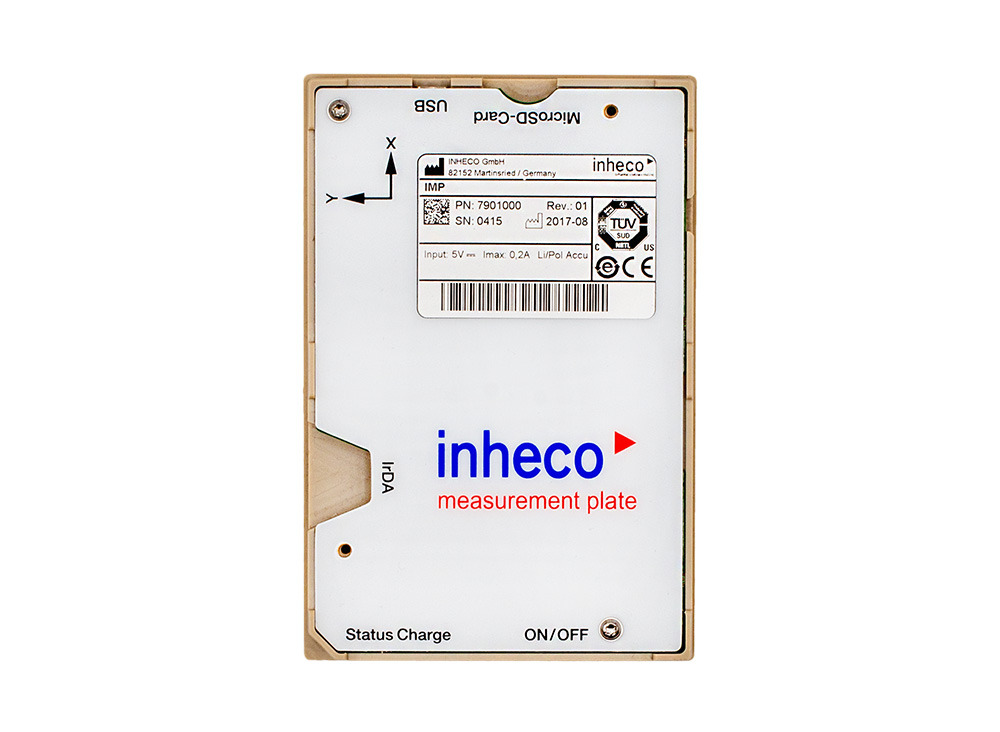

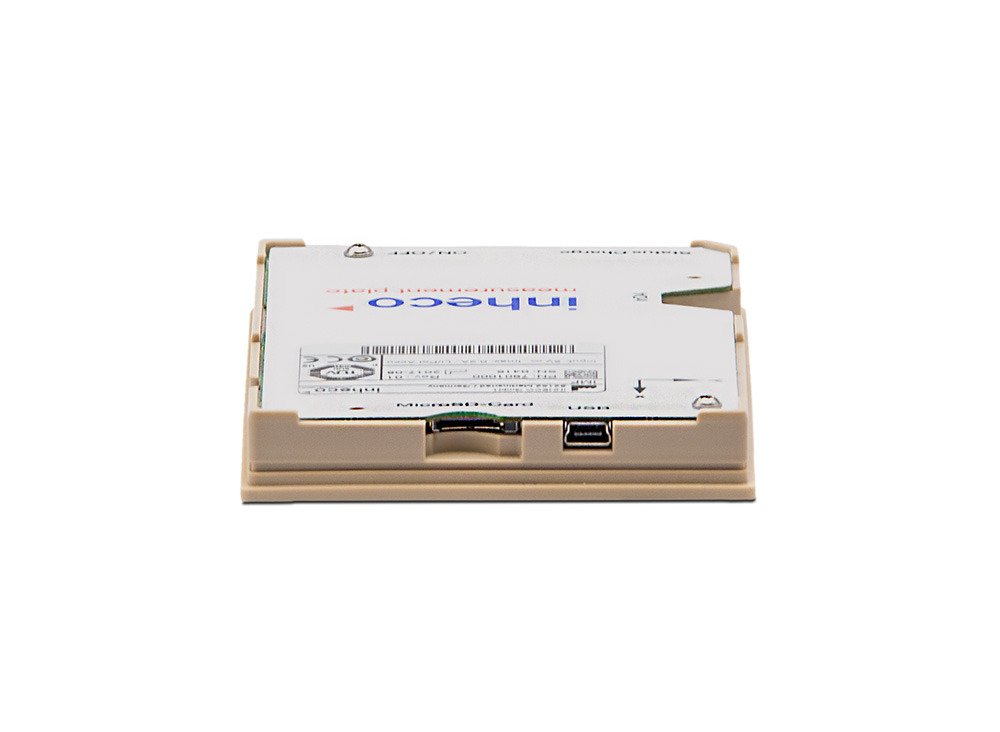

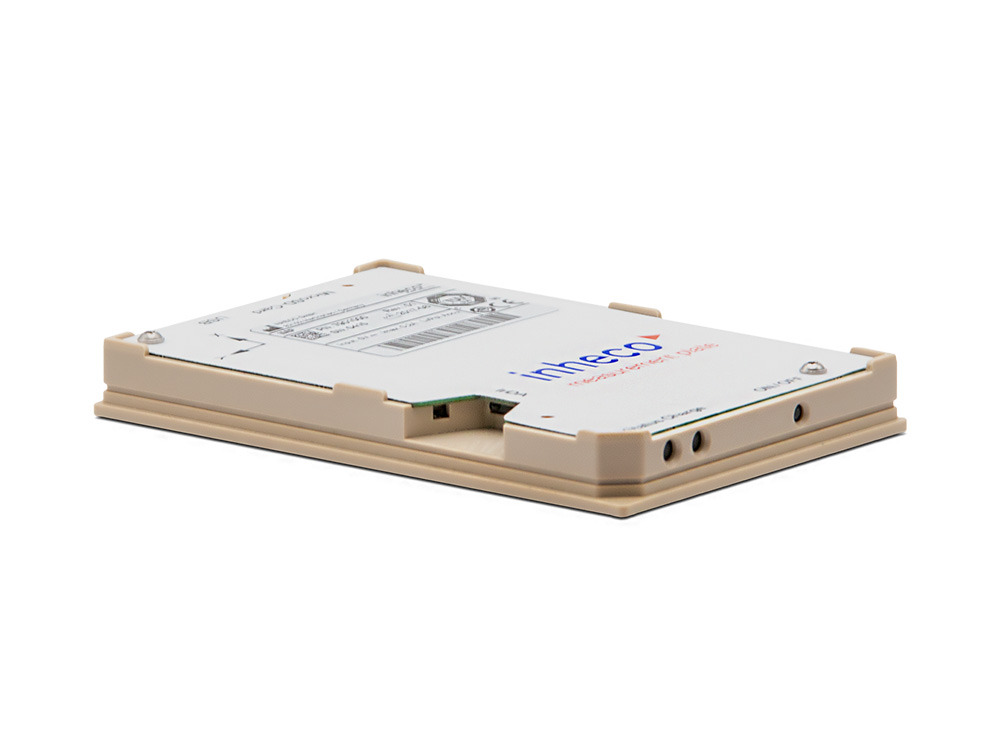

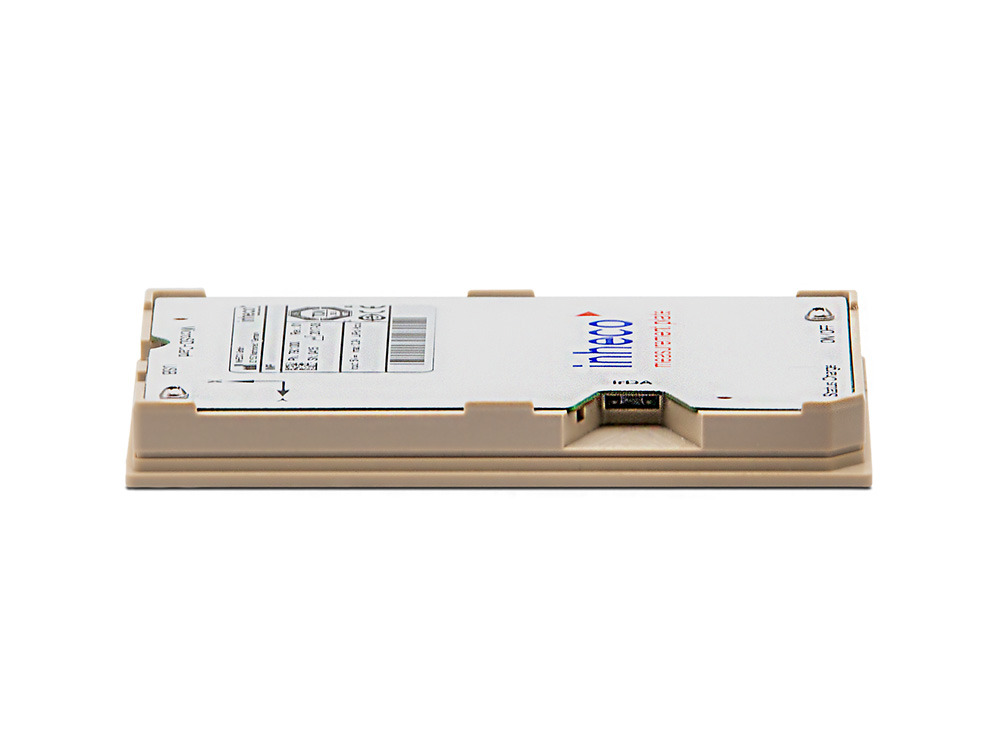

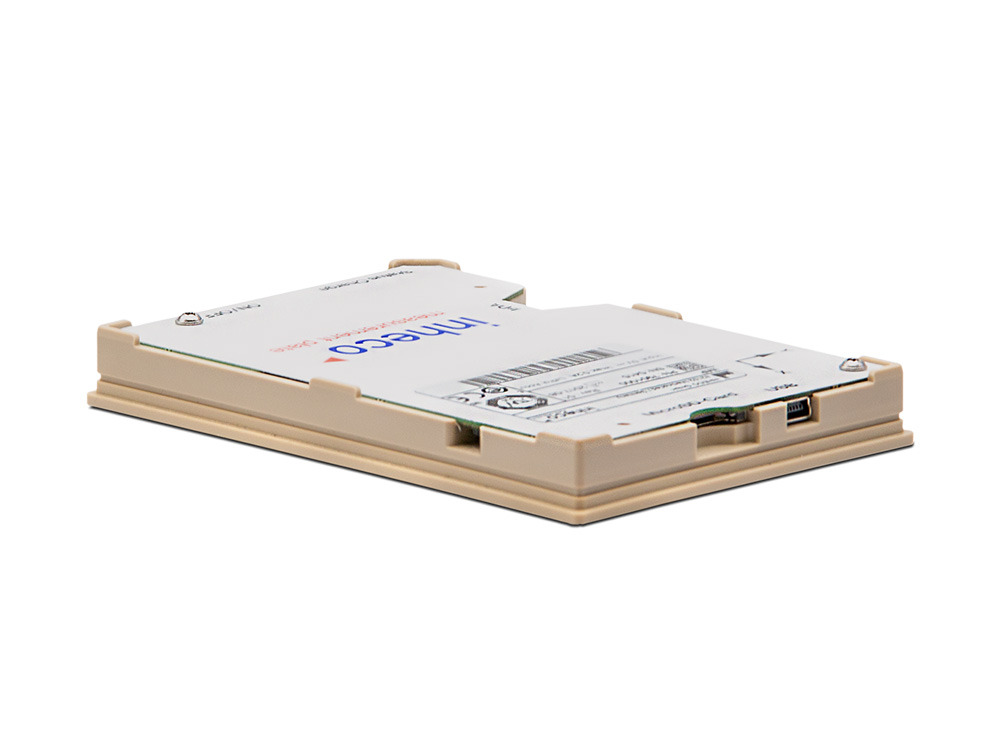

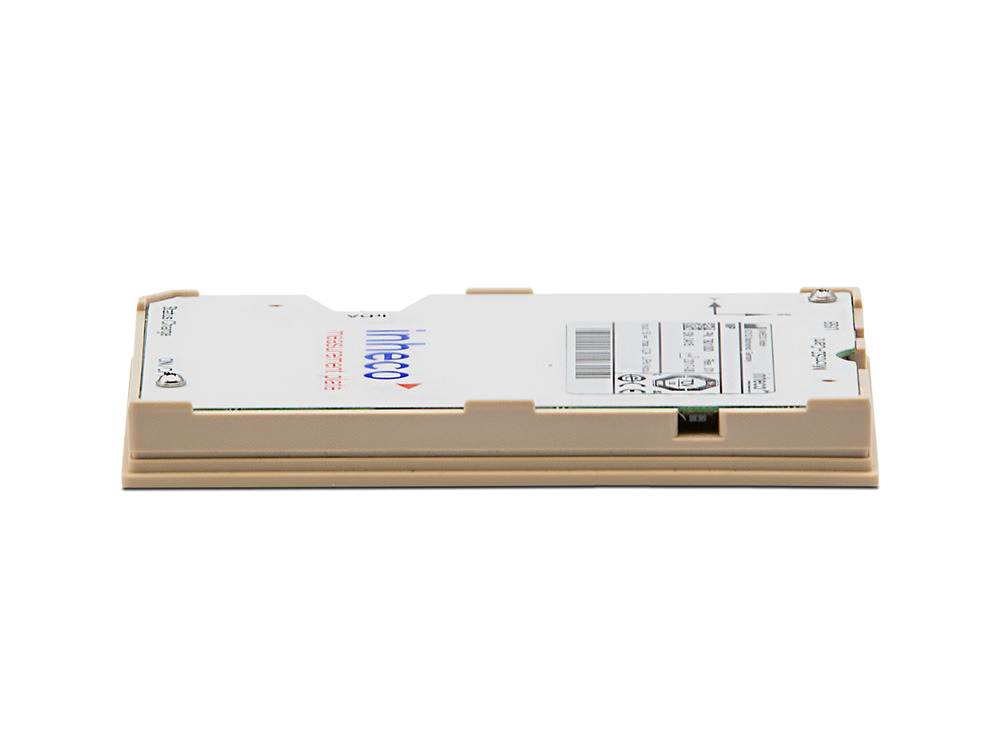

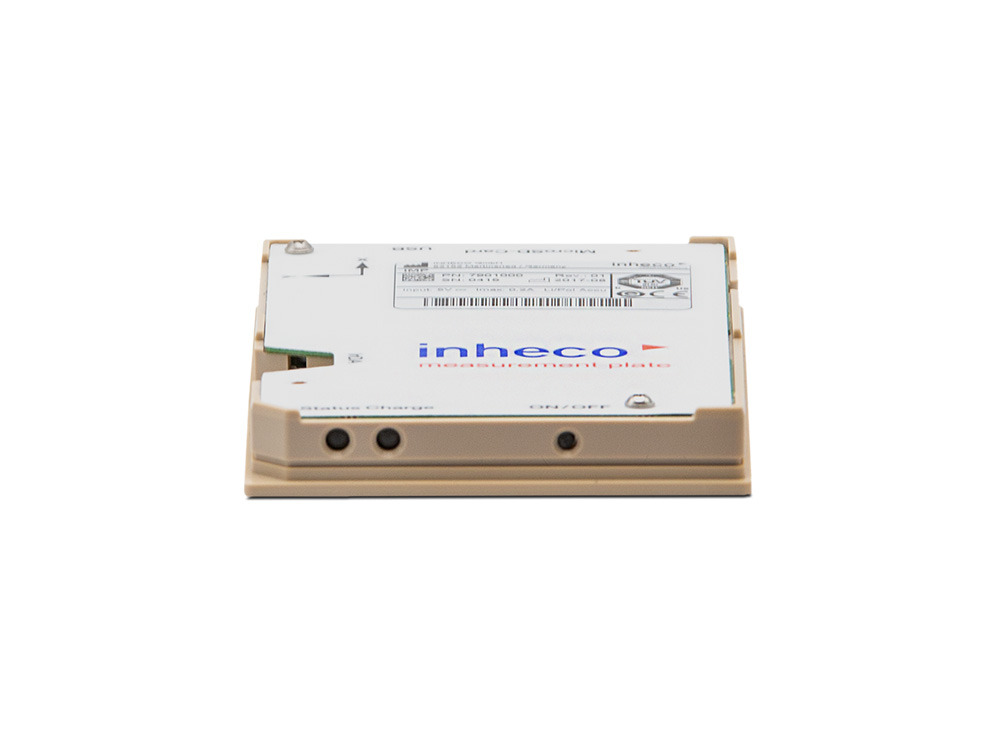

Inheco IMP MEASUREMENT PLATE

Ensure and verify that your equipment is operating correctly

Ensure and verify the temperature, humidity and shaking pattern for any ANSI/SLAS format device with the all-in-one Inheco Measurement Plate (IMP).

The cordless IMP is a stand-alone verification tool that can be used to check and test devices made by Inheco or other manufacturers. The IMP is easy to use and install in closed incubators and readers. Use it for quality control checks and verification of accuracy for all makes of flat incubators, heaters and shakers, whether integrated into liquid handling decks or stand-alone devices.

ALL-IN-ONE MEASUREMENT
Verify and record your instruments’ temperature, humidity and shaking including pattern, RPM & amplitude. The IMP software enables a thorough analysis of the temperature, humidity and shaking performance for your devices. Adjust the measurement profile for each run be setting and fine-tuning your selected parameters before testing. It’s quick to export your data as a CSV file for further analysis and QC reporting.

COMPLETE CHECKS
The IMP measures temperature using 10 sensors distributed over the flat measurement area, including the 4 corners, the center and random positions in between. Another sensor records ambient temperature and ambient humidity. A three-axis acceleration sensor measures the shaking speed, amplitude and pattern. Its cordless design makes the IMP as reliable for checking closed systems as open ones.

VERSATILE
The IMP can be used between 4 °C and 60 °C in closed systems, and at up to 100 °C for open systems. It’s designed to be easily handled and automated for use with common gripper systems. Inheco supplies adapters to ensure correct thermal contact between the device plate and the IMP.

RELIABLE AND SUPPORTED
We recommend an annual re-calibration from an accredited calibration laboratory for your IMP. Contact Inheco tech support to arrange re-calibration.

Every Inheco accessory is designed, engineered and made in Germany and undergoes rigorous quality control before delivery. It comes with a global two-year warranty and full customer service including remote support, diagnostic and servicing options that focusses on minimizing operational downtime.

Get a Quote





Inheco

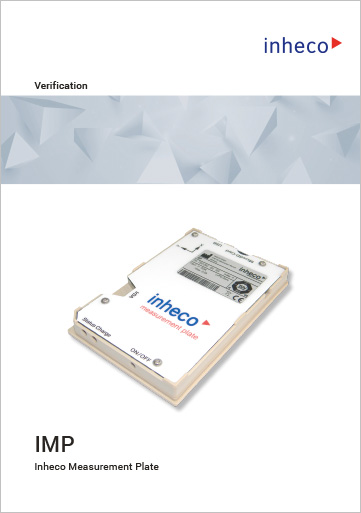

IMP Brochure (PDF)
Inheco

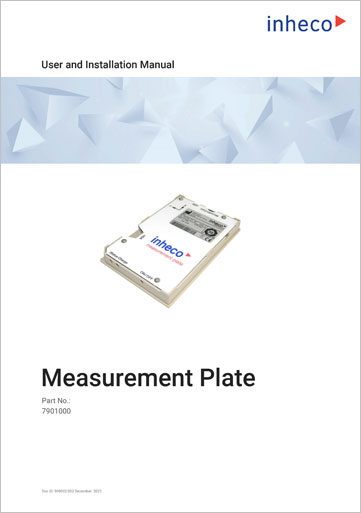

IMP Manual (PDF)

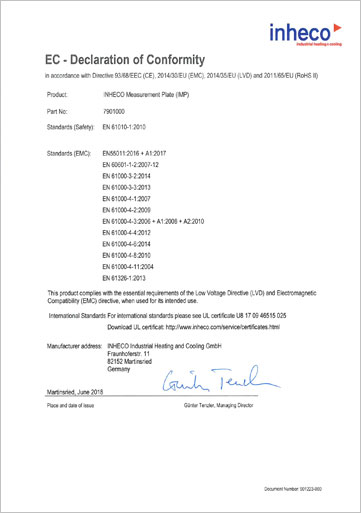

InhecoIMP EC Declaration (PDF)

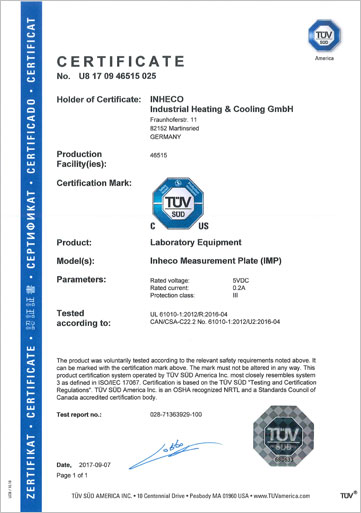

InhecoIMP UL Certificate (PDF)

Technical Specifications IMP

IMP Unit
Dimensions:
Length 128 mm (5.04 in)
Width 86 mm (3.39 in)
Height 15 mm (0.59 in)

Weight (excluding cables) 100 g (0.273 lbs)
Input voltage (USB-connector) 5 Vdc, ±10%
Input current 0.2 A
Fuse Internal
Interface USB 1.1 or 2.0
Micro-SD-Card (512 MB to 2 GB)
IrDA
Protection category IP 20
Temperature sensors 10 digital sensors
Shaker sensor (3 axis) Max: ±6 g
Humidity sensor 0-100% rel. humidity

Battery Charger
Input voltage 100 to 240 V/AC
Output voltage 5 Vdc
Input current 0.4 A
Output current 1.6 A
Safety class 2
Power frequency 47 to 63 Hz
Fuse Internal, resettable

Environmental Conditions
Max. operation height 2000 m (6562 ft)
Tolerable relative humidity:
Operation 100%, not condensing
Battery charging 80%, not condensing
Transportation and storage 80%, not condensing
Temperature:
Operation +4 °C to +60 °C (+41 °F to +140 °F)
Battery charging 0 °C to +40 °C (+32 °F to +104 °F)
Transportation and storage -10 °C to +60 °C (+14 °F to +140 °F)
Temperature precision:
Temperature precision ±0.1 °C
Temperature accuracy ±0.1 °C
Movement precision:
Frequence precision ±0.5 Hz
Frequence accuracy ±5%
