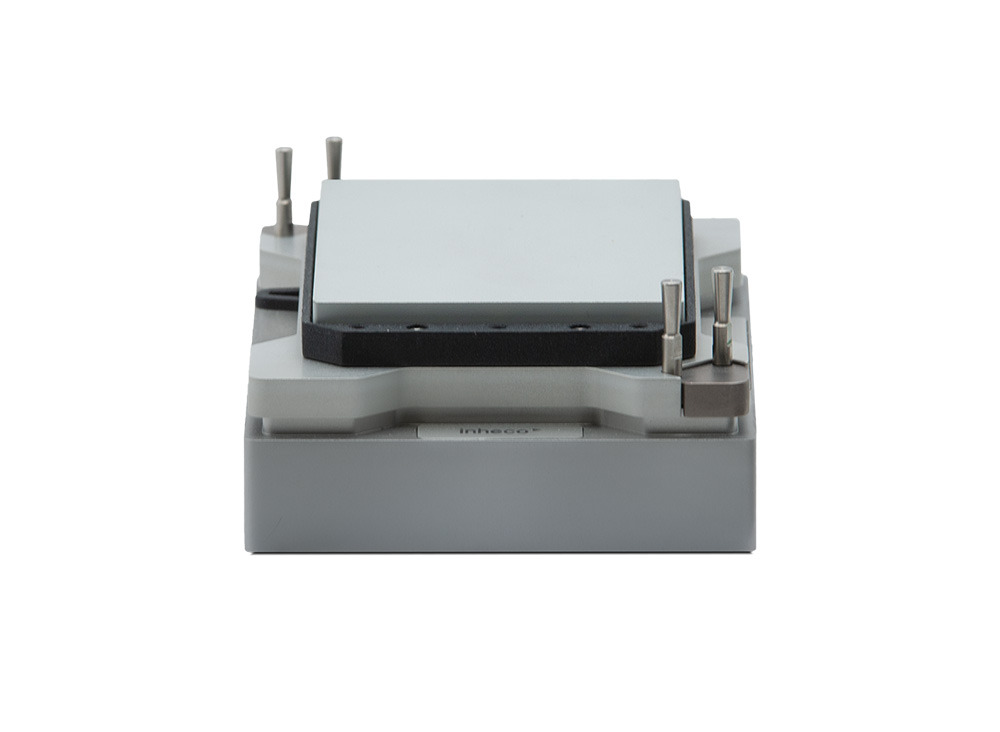

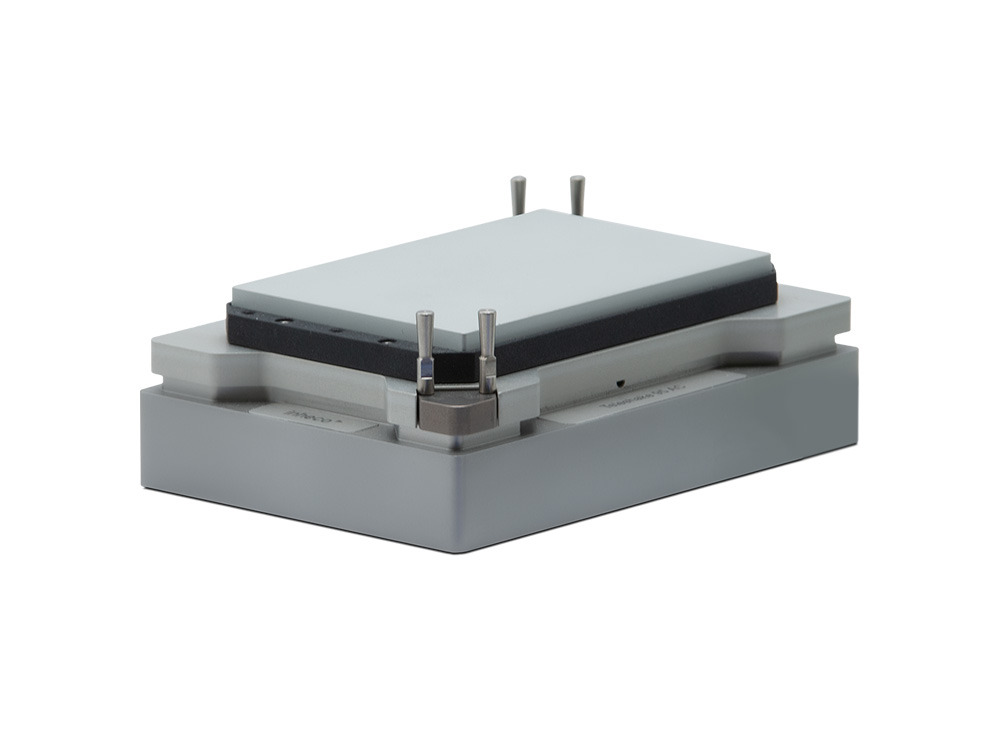

Teleshake 95 AC

High performance compact heater-shaker with secure fixing for variable plates


Heat and shake samples up to 500 g in weight in a compact device that integrates with all major deck manufacturers.
A combined heater-shaker delivers efficiency, precision and cost effectiveness to your sample preparation. They are vital for life science research applications in molecular biology, biochemistry and clinical chemistry including next generation sequencing (NGS). Shaking is preferred to stirring when mixing low volume samples because no additional stirring rod is required, so there’s no extra risk of contamination, and a heated shaker can reduce bottlenecks in your workflow by reducing reaction process times and operator workload.

UNIFORMITY AND ACCURACY
The Teleshake 95 AC allows you to shake a wide choice of plates. Thanks to automated clamping it can handle loads up to 500 g. The Teleshake 95 AC operates in a temperature range of 5 K above ambient to 125 °C, and delivery excellent performance with
  • accuracy at 37 °C of ± 0.3 °C
  • uniformity at 37 °C of ±0.2 °C.
It can be used to shake samples orbitally with rotation speeds from 200 rpm to 3000 rpm, from a low-speed start to prevent spills.

ADAPTABLE

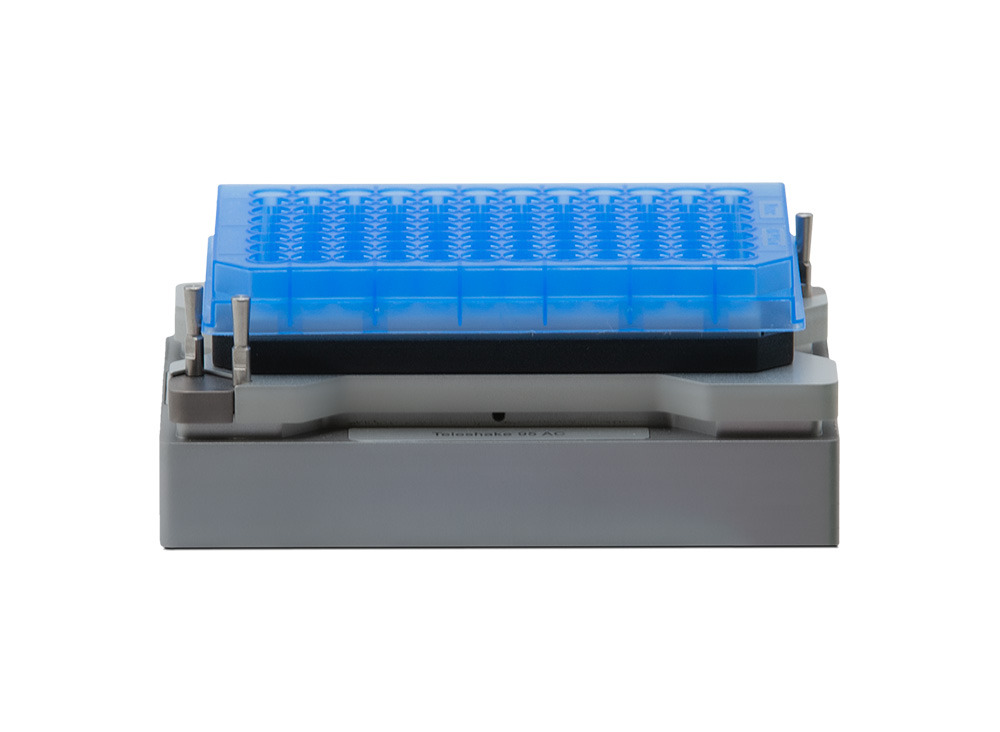

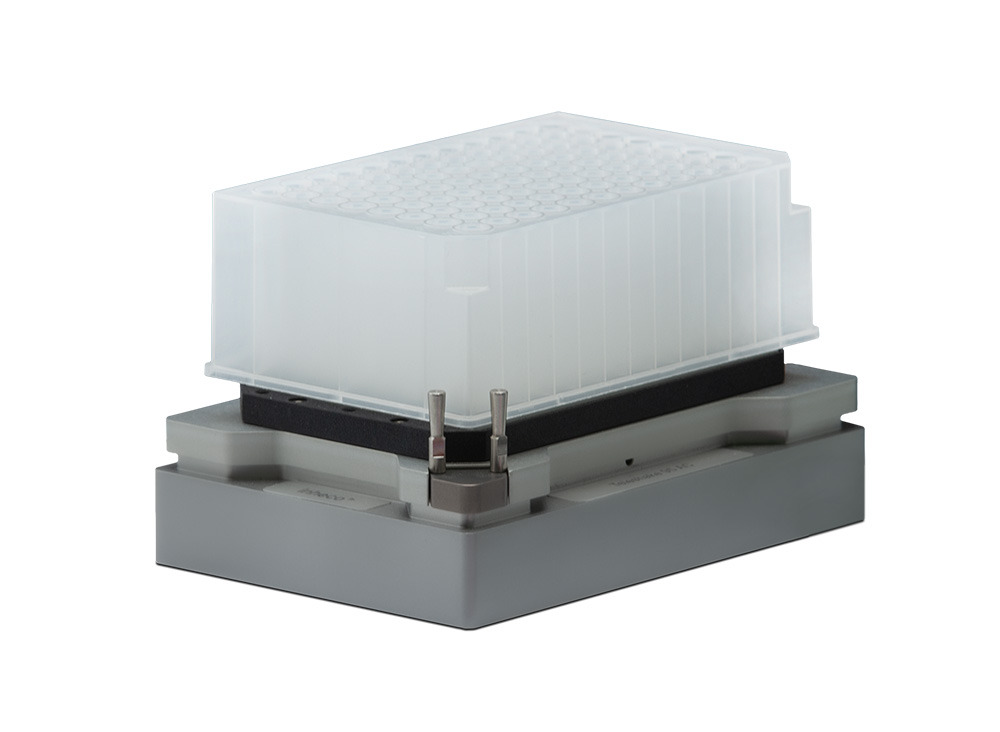

Use your preferred disposable with the Teleshake 95 AC, including microplates, PCR plates, strips, and tubes, and some low-profile reservoirs and polypropylene plates. Active clamping (automated labware clamping), using customized clamping rods for different labware, lets you use different format plates without adjustment. That also enables you to shake plates with clamped lids and allows piercing through sealing foils while keeping the plate firmly clamped. We offer over 200 adapters, manufactured in-house to ensure a perfect fit to the geometry of the disposable item, or can tailor an adapter to fit your needs.

EASY TO INTEGRATE
The Teleshake 95 AC takes up just one ANSI/SLAS plate position on deck, occupying little more space than a standard microplate, and is just 55 mm high, with a zero positioning function for comfortable robotic gripping. The separate off-deck controller further minimizes deck space while reducing noise and temperature. Choose the Inheco Multi TEC Control unit to control up to six devices in parallel when using several Inheco products on your deck. An API is available and the Teleshake 95 AC is integrated with all major deck manufacturers, enabling immediate plug and play.

RELIABLE AND SUPPORTED
Every Inheco device is designed, engineered and made in Germany and undergoes rigorous quality control before delivery. It comes with a global two-year warranty and full customer service including remote support, diagnostic and servicing options that focusses on minimizing operational downtime.

Get a Quote





Inheco
Teleshake95 Brochure (PDF)
Inheco
Teleshake95 Manual (PDF)
Inheco
Teleshake95 EC Declaration (PDF)
Inheco
Teleshake95 EC Declaration (PDF)
Inheco
Teleshake95 UL Certificate (PDF)

Inheco
Production Facility Inspection (PDF)

Technical Specifications Teleshake 95 AC

Teleshake 95 AC
Part number p/n 7100150
Height (bottom to contact surface) 47.3 mm [1.862 in]
Height with standard fixation pins 53.7 mm [2.144 in
Length x width 144 mm x 101 mm [5.669 x 3976 in]
Temperature range Up to +125 °C [up tp +257 °F]
Maximum temperature difference in cooling mode
∆T (=Tambient- Ttarget)
---
Noise Max. 42 dB(A)
Protection category IP 20
Weight including cables 2.2 kg [4.65 lbs]

Technical information regarding shaking for all devices
Maximum load 1.0 kg
Shaker frequency weight reduces the max. speed 200 to 3000 rpm
Shaking amplitude 2 mm [0.07874 in]
Shaking pattern Orbital

The use of RPM smaller 300 with the Thermoshake AC is possible. However, the shaking performance cannot be guaranteed. In case the shaking is not steady you will receive a warning "error 35 slot x (x = slot ID). This error can be ignored if no other error or warning are set at the same time. It is not Inheco´s responsibility if there is any method failure due to this low RPM.

Environmental conditions
Tolerable relative humidity:
Operation 10-80% RH *3 at +20 °C up to +30 °C [+68 °F to +86 °F]
Transportation and storage 10-80% RH *3 at +20 °C up to +30 °C [+68 °F to +86 °F]
Temperature:
Operation +15 °C to +32 °C [+59 °F to 90 °F]
Transportation and storage -10 °C to +60 °C [+14 °F to 140 °F] *3

*3) Condensate can prevent the Shaking devices from operating properly and can damage the Thermoshake AC. Condensate should be eliminated on a daily basis or more often, for example by heating cycles in between cooling cycles.

Teleshake 95 AC Accessories

Inheco IMP Measurement Plate

Read more
Inheco Adapter Plates and Custom Adapter

Read more
Inheco TEC Controller and Slot Modules

Read more
Inheco Heated Lid

Read more

Why use a combined heater shaker?

When you have limited deck space it helps to have devices that offer flexibility and more than one function – as long as you can be sure of excellent performance. Heated shakers allow you to shake heated samples without transferring them, ensuring minimal heat loss and faster processing time.

What to look for in a combined heater shaker?
Both heating and shaking should be accurate and uniform for every sample. Even heating, safe clamping and wide choice of disposables are important in many processes. Depending on your requirements, you may want to choose a heater shaker which can handle heavier loads, or which offers a choice of shaking patterns.
  • Load – handling the heaviest load you are likely to require.
  • Shaking options – both speed and pattern (for linear shaking, see our Teleshake 95 Classic).
  • Disposable options – do you need active clamping, flexibility to use different disposables including vials and reservoirs, or to be able to use lidded plates?
  • Temperature uniformity – delivering identical temperature across the entire block, with identical results for samples in the middle or on the edge of the block, and throughout the run.
  • Temperature accuracy – ensuring accurate and stable, reproduceable temperatures for the duration of the run, and for every sample in the block.
  • Small footprint – delivering the required performance while taking up as little space on deck as possible.

Use of the Inheco Teleshake 95 AC

The Teleshake 95 AC is integrated with liquid handling workstations, in combination with reader and robotic arm, including in PCR and NGS.

Reliable heating and shaking for up to 500 g load

Shaking
The Teleshake 95 AC shakes using an electromagnetic motor.
  • Orbital shaking pattern
  • 200 rpm to 3000 rpm
  • Load up to 500 g
  • 2 mm amplitude
  • Anti-spillage
  • Anti-vibration
  • Ideal frequency for 96 & 384 plates
Heating
The Teleshake 95 heats using a heating foil.
  • Temperature range: from ambient +5 K to +125 °C
  • Accuracy at 37 °C target temperature ± 0.3 °C
  • Uniformity at 37 °C target temperature ±0.2 °C
Software
  • API available. The Inheco Teleshake AC is quick to connect, and ready for future developments in your lab.
Verification
The Inheco measurement plate (IMP) is a stand-alone verification tool which enables wireless verification of temperature, humidity and shaking pattern. So, when long term consistency and accuracy are critical, you can easily monitor and measure the performance of your Inheco devices.
