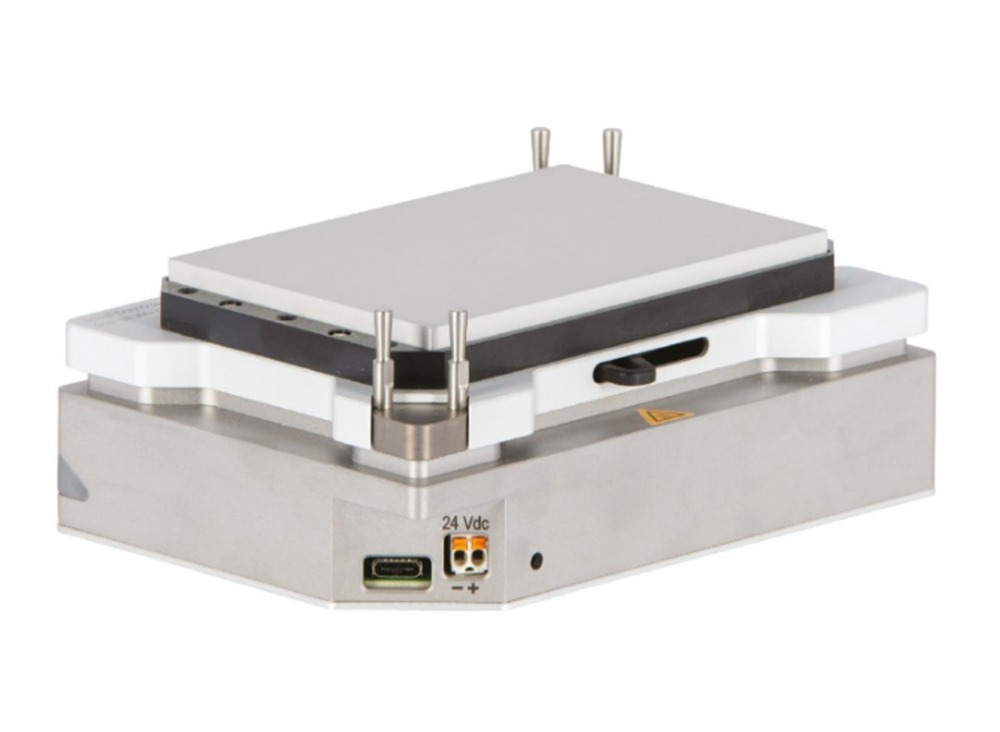

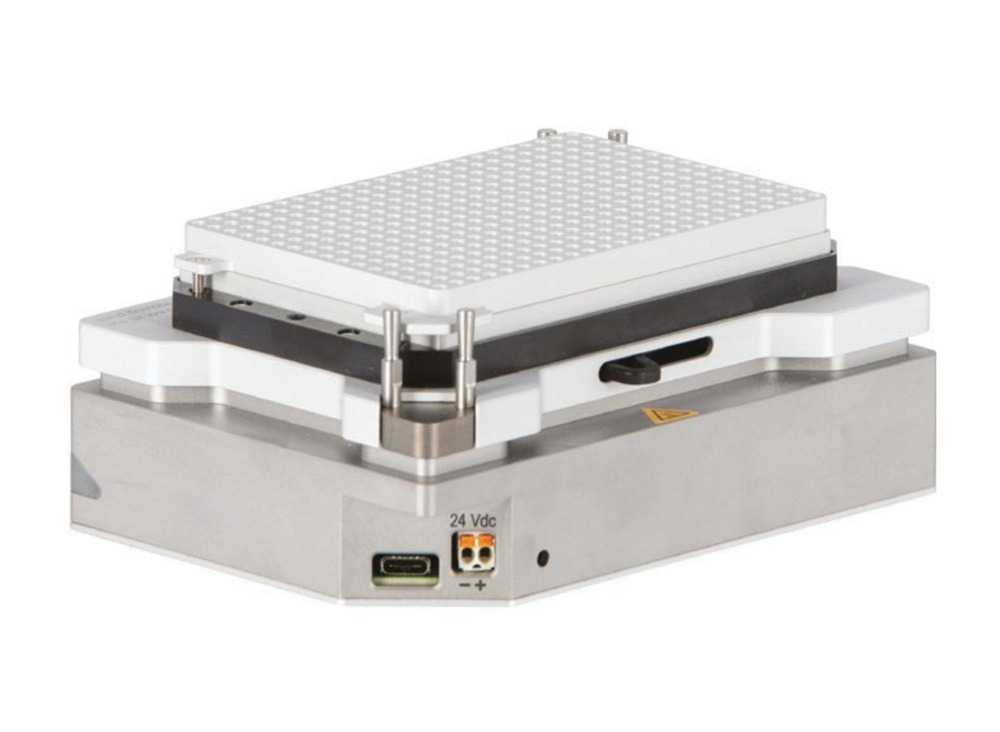

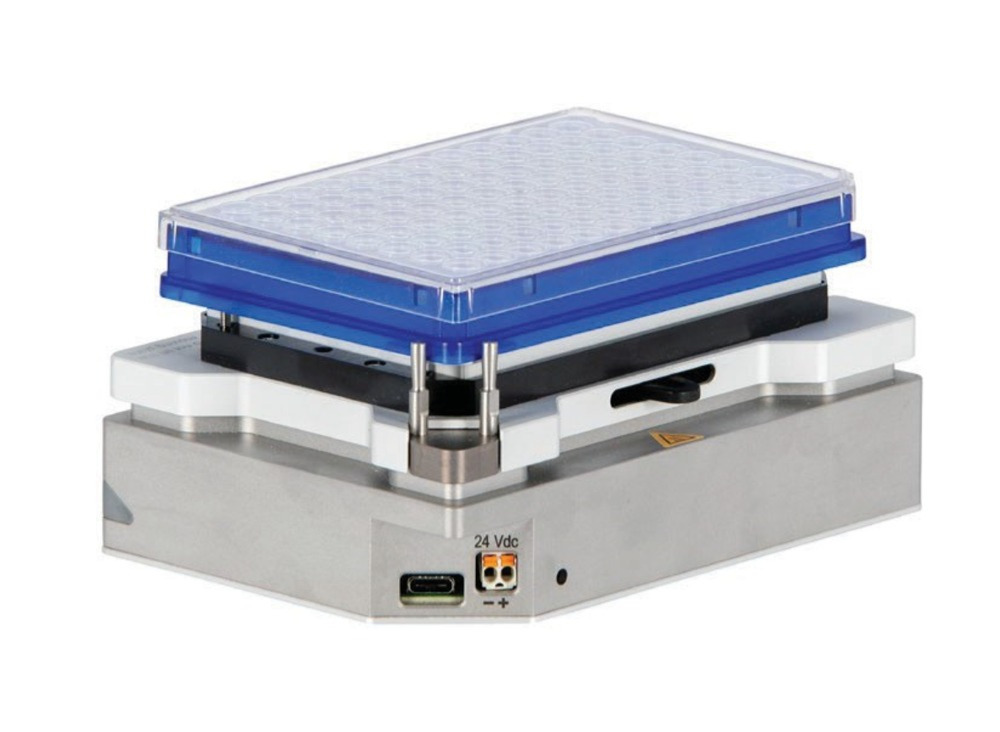

Heat and shake samples up to 1 kg in weight in a compact instrument that integrates with all major workflows and applications.
Inheco has taken our existing class-leading Teleshake and made it easier to integrate and introduced digital performance improvements. The Teleshake 95 AC USB is the 1st Inheco on-deck instrument to include an integrated controller, removing the need for an external controller and the associated bulky connector cables. Communication is enabled via a standard USB-Interface, enabling simple management and integration.Easy Integration into robotic workflows
- takes up significantly less space on and around the workflow
- can be powered either by the liquid handling system directly or from a separate 24 V power supply
Performance:
- shakes samples of up to 1 kg in weight
- operates in a temperature range of 5 K above ambient to 125°C, and delivers excellent performance with accuracy at 37°C of ± 0.3°C and uniformity at 37°C of ± 0.2°C
- can be variably set with rotation speeds starting at 1 rpm moving up to a max of 3,000 rpm
- digital motor delivers a zero-positioning function, zero position is adjustable by user
- allows piercing through sealing foils while keeping the plate firmly clamped
Features:
- available with 2mm and 3mm amplitude
- new USB interface enables simple and standardized integration and connection with controller programs and interfaces

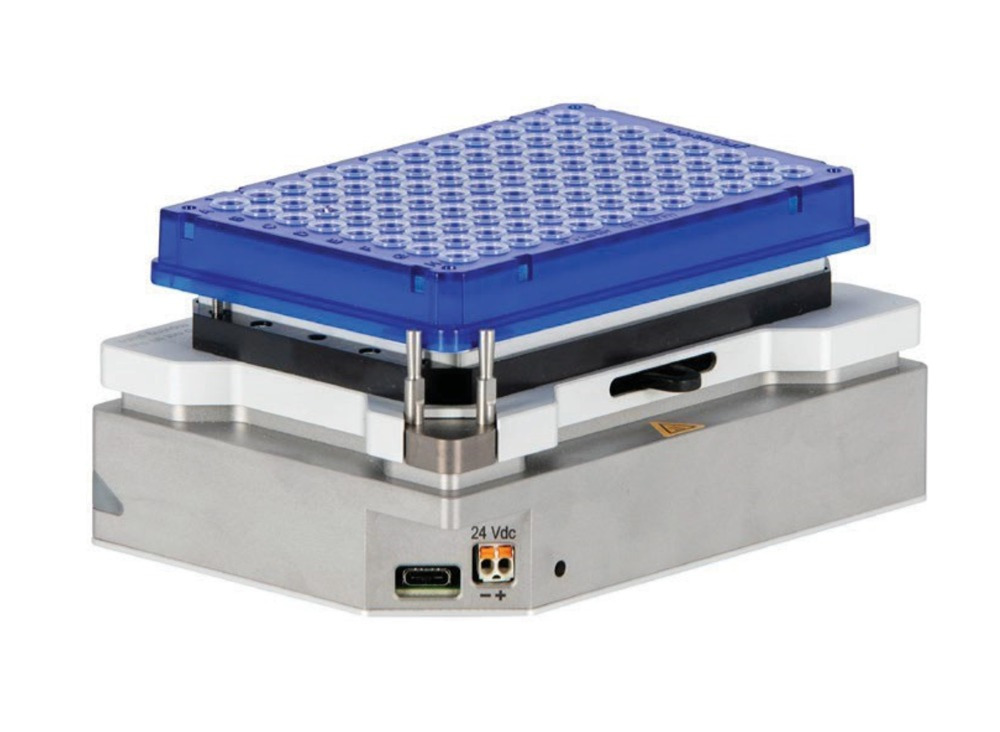

- active clamping lets you use different plate formats without adjustment

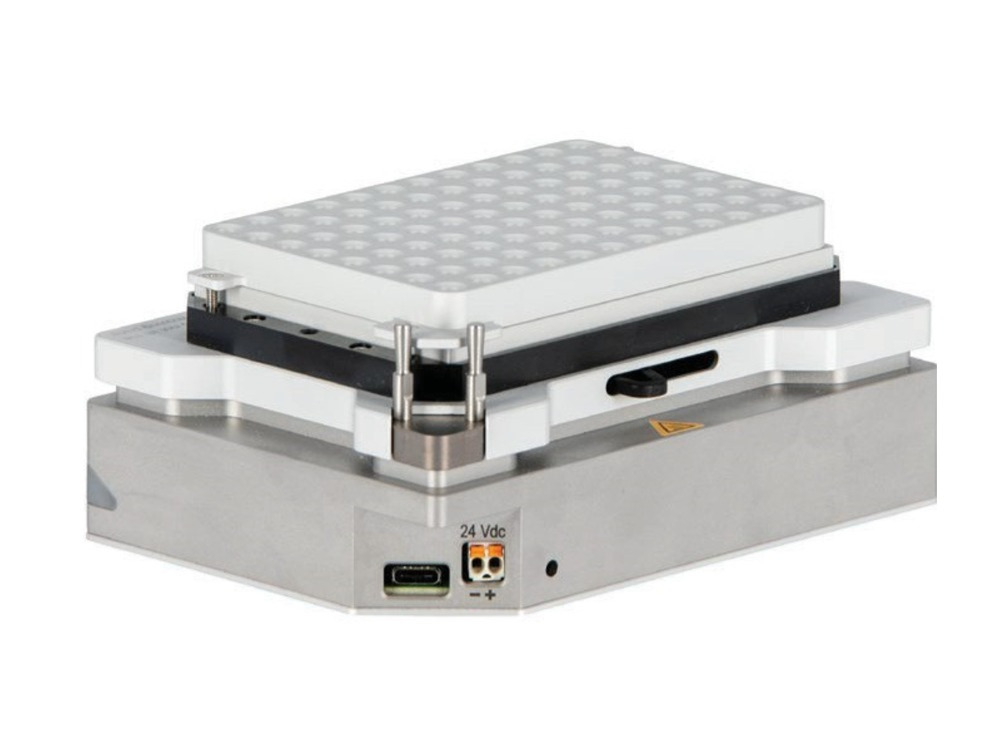

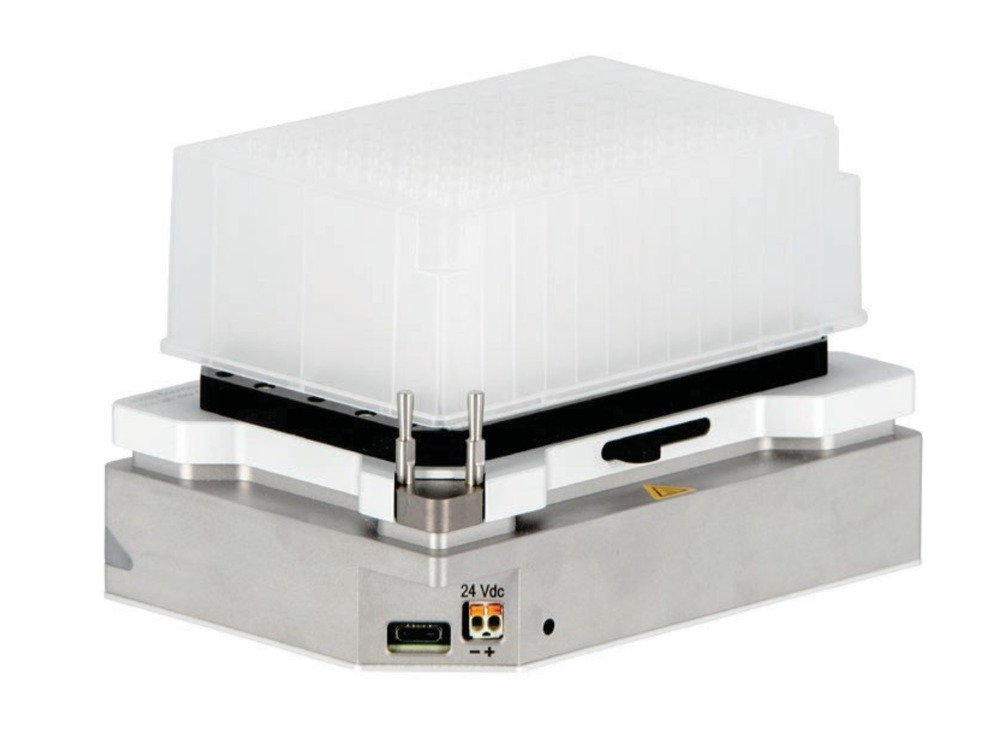

- can be used with all of your disposables, from vials and reservoirs to lidded sample plates, for optimized heat transfer Inheco offers over 200 adapters, manufactured in house
- anti-vibration technology - adjustable counterweight minimizes vibration
- anti-spillage technology - acceleration can be adjusted by user
- with the new status LED the status of the instrument can be instantly checked
- designed, engineered and made in Germany, rigorous quality control
- global two-year warranty and full customer service including remote support, diagnostic and servicing options

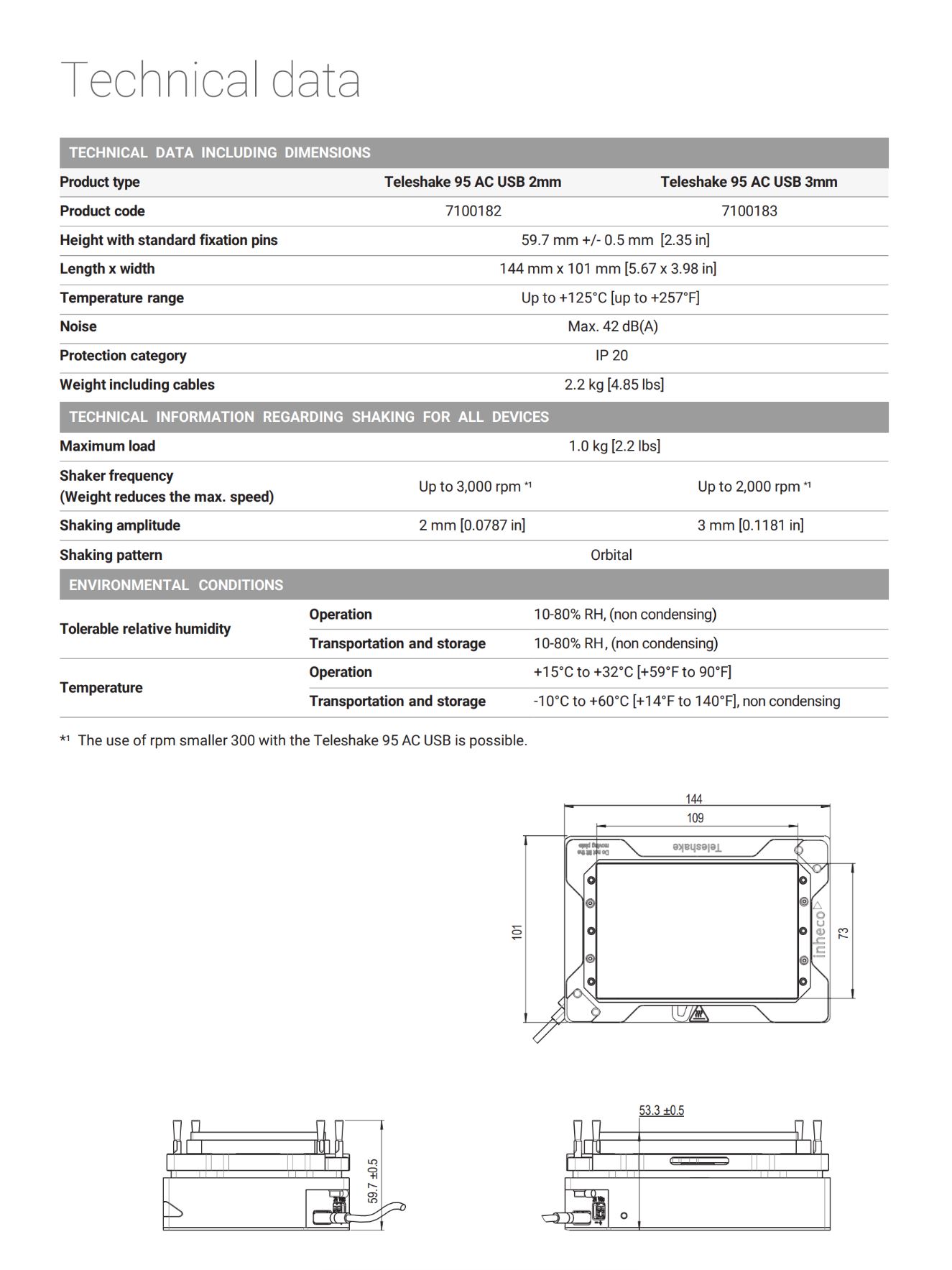

Technical Specifications Teleshake 95 AC USB
| Teleshake 95 AC USB | ||
|---|---|---|
| Product type | Teleshake 95 AC USB 2mm | Teleshake 95 AC USB 3mm |
| Part number | 7100182 | 7100183 |
| Height with standard fixation pins | 59.7 mm +/- 0.5 mm [2.35 in] | |
| Length x width | 144 mm x 101 mm [5.67 x 3.98 in] | |
| Temperature range | Up to +125 °C [up tp +257 °F] | |
| Noise | Max. 42 dB(A) | |
| Protection category | IP 20 | |
| Weight including cables | 2.2 kg [4.85 lbs] | |
| Technical information regarding shaking for all instruments | ||
|---|---|---|
| Maximum load | 1.0 kg [2.2 ibs] | |
| Shaker frequency weight reduces the max. speed | Up to 3000 rpm*1 | Up to 2000 rmp*1 |
| Shaking amplitude | 2 mm [0.0787 in] | 3 mm [0.118 in] |
| Shaking pattern | Orbital | |
| Environmental conditions | |
|---|---|
| Tolerable relative humidity: | |
| Operation | 10-80% RH (non condensing) |
| Transportation and storage | 10-80% RH (non condensing) |
| Temperature: | |
| Operation | +15 °C to +32 °C [+59 °F to 90 °F] |
| Transportation and storage | -10 °C to +60 °C [+14 °F to 140 °F], non condensing |
*1 The use of rpm smaller 300 with the Teleshake 95 AC USB is possible.

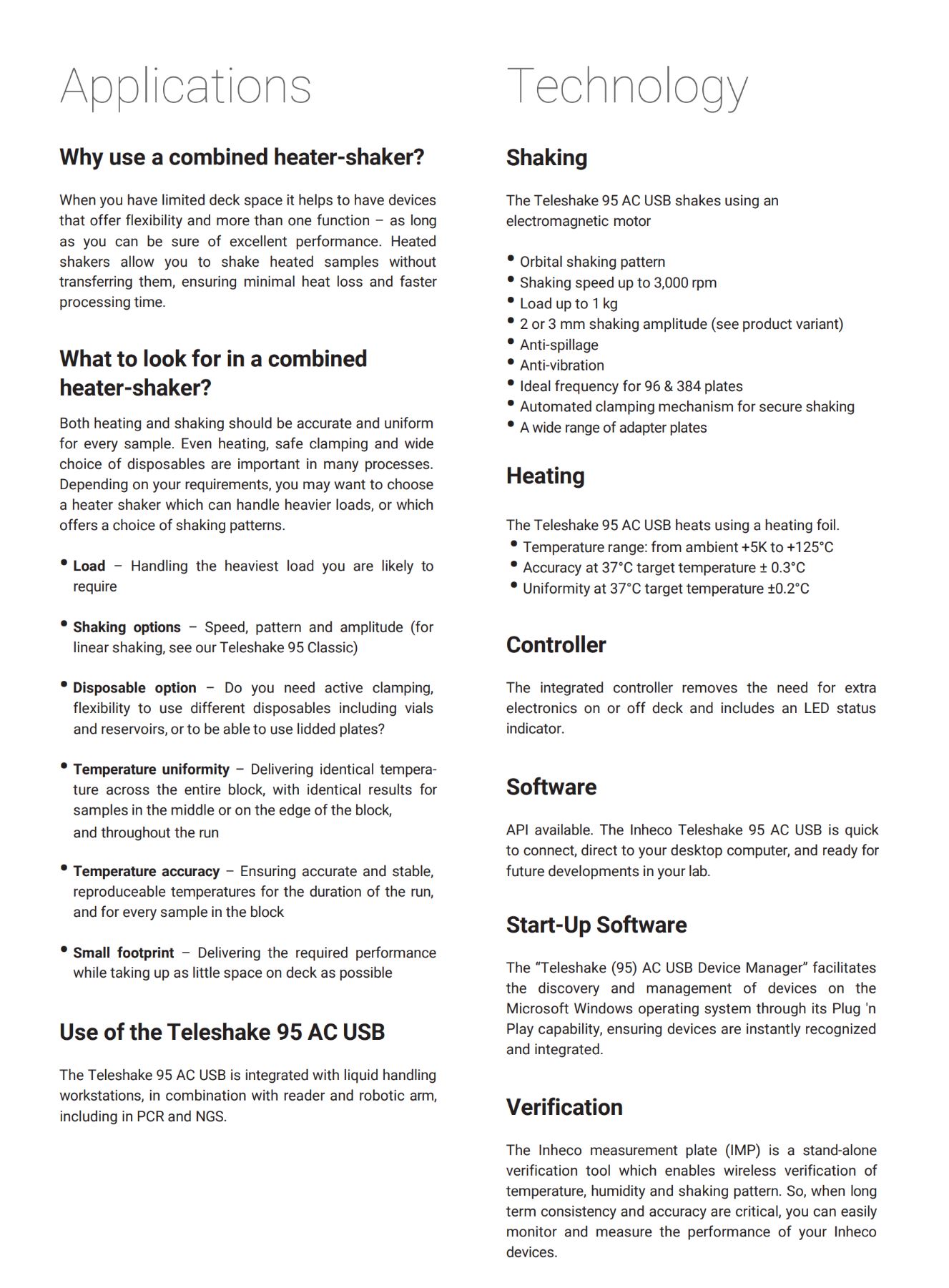

Why use a combined heater-shaker?
When you have limited deck space it helps to have instruments that offer flexibility and more than one function -as long as you can be sure of excellent performance. Heated shakers allow you to shake heated samples without transferring them, ensuring minimal heat loss and faster processing time.What to look for in a combined heater-shaker?
Both heating and shaking should be accurate and uniform for every sample. Even heating, safe clamping and wide choice of disposables are important in many processes. Depending on your requirements, you may want to choose a heater shaker which can handle heavier loads, or which offers a choice of shaking patterns.
Load - Handling the heaviest load you are likely to require
Shaking options - Speed, pattern and amplitude (for linear shaking, see our Teleshake 95 Classic)
Disposable option - Do you need active clamping, flexibility to use different disposables including vials and reservoirs, or to be able to use lidded plates?
Temperature uniformity - Delivering identical tempera- ture across the entire block, with identical results for samples in the middle or on the edge of the block,
and throughout the run
Temperature accuracy - Ensuring accurate and stable, reproduceable temperatures for the duration of the run, and for every sample in the block
Small footprint - Delivering the required performance while taking up as little space in the workflow as possible
Use of the Inheco Teleshake 95 AC USB
The Teleshake 95 AC USB is integrated with liquid handling workstations, in combination with reader and robotic arm, including in PCR and NGS.Shaking
The Teleshake 95 AC USB shakes using an electromagnetic motor- Orbital shaking pattern
- Shaking speed up to 3,000rpm
- Load up to 1kg
- 2 or 3mm shaking amplitude (see product variant)
- Anti-spillage
- Anti-vibration
- Ideal frequency for 96 & 384 plates
- Automated clamping mechanism for secure shaking
- A wide range of adapter plates
Heating
- The Teleshake 95 AC USB heats using a heating foil.
- Temperaturerange:fromambient+5Kto+125°C
- Accuracyat 37°C target temperature±0.3°C
- Uniformityat37°C targettemperature±0.2°C
Controller
The integrated controller removes the need for extra electronics on or off deck and includes an LED status indicator.
Software

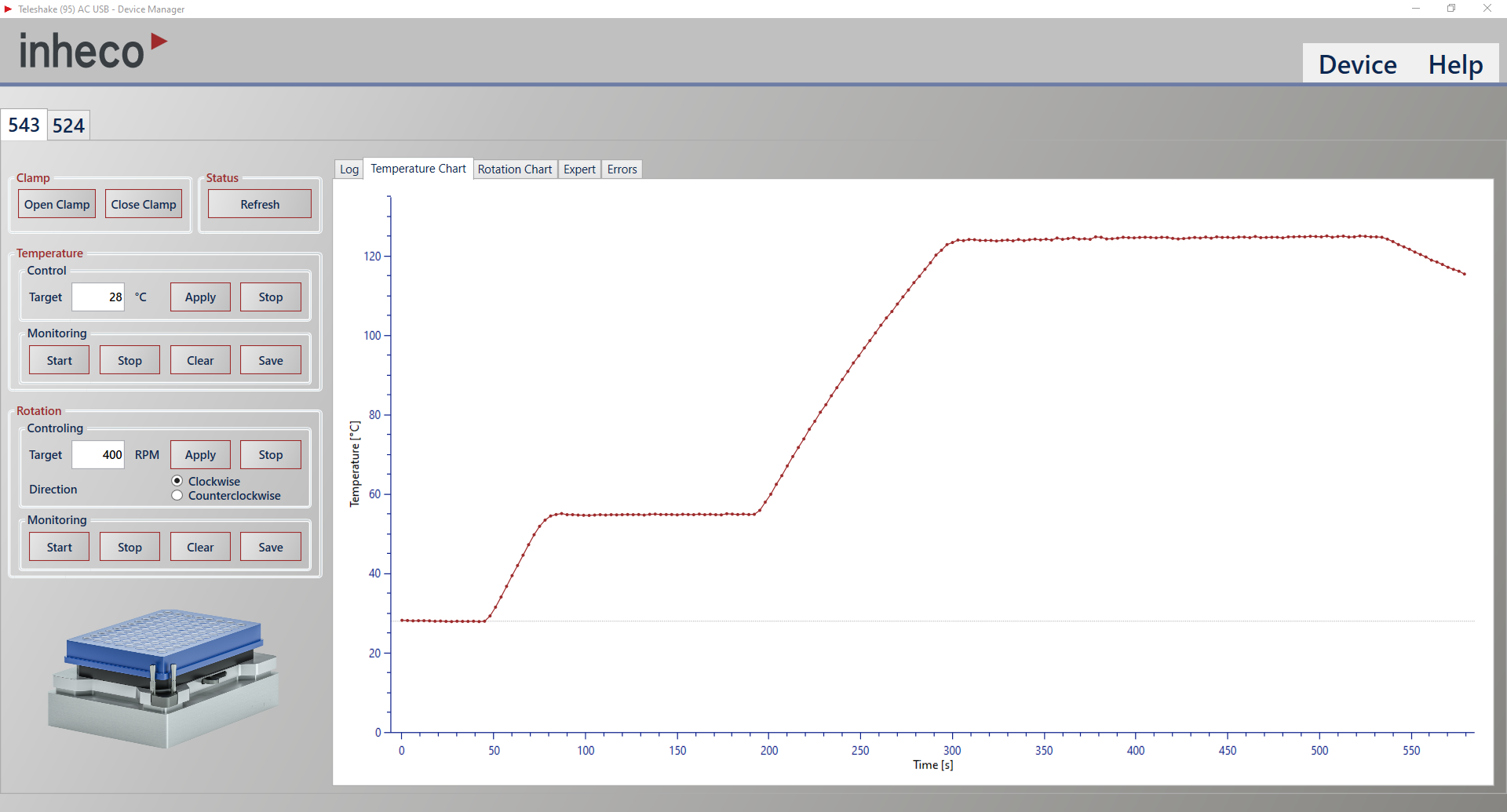

The “Teleshake (95) AC USB Device Manager” facilitates the discovery and Management of instruments on the Microsoft Windows operating systemt hrough ist Plug'n Play capability,ensuring the instruments are instantly recognized and integrated.
Verification
The Inheco measurement plate (IMP) is a stand-alone verification tool which enables wireless verification of temperature, humidity and shaking pattern. So, when long term consistency and accuracy are critical, you can easily monitor and measure the performance of your Inheco instruments.
The integrated controller removes the need for extra electronics on or off deck and includes an LED status indicator.
Software
- API available. The Inheco Teleshake 95 AC USB is quick to connect, direct to your desktop computer, and ready for future developments in your lab.
The “Teleshake (95) AC USB Device Manager” facilitates the discovery and Management of instruments on the Microsoft Windows operating systemt hrough ist Plug'n Play capability,ensuring the instruments are instantly recognized and integrated.
Verification
The Inheco measurement plate (IMP) is a stand-alone verification tool which enables wireless verification of temperature, humidity and shaking pattern. So, when long term consistency and accuracy are critical, you can easily monitor and measure the performance of your Inheco instruments.
