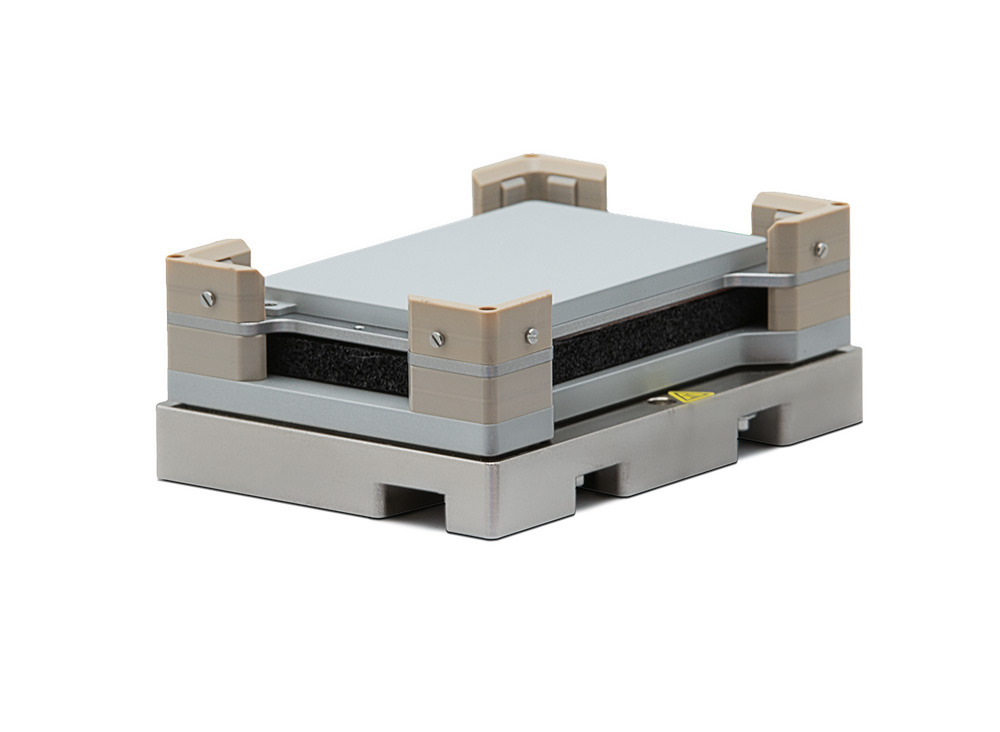

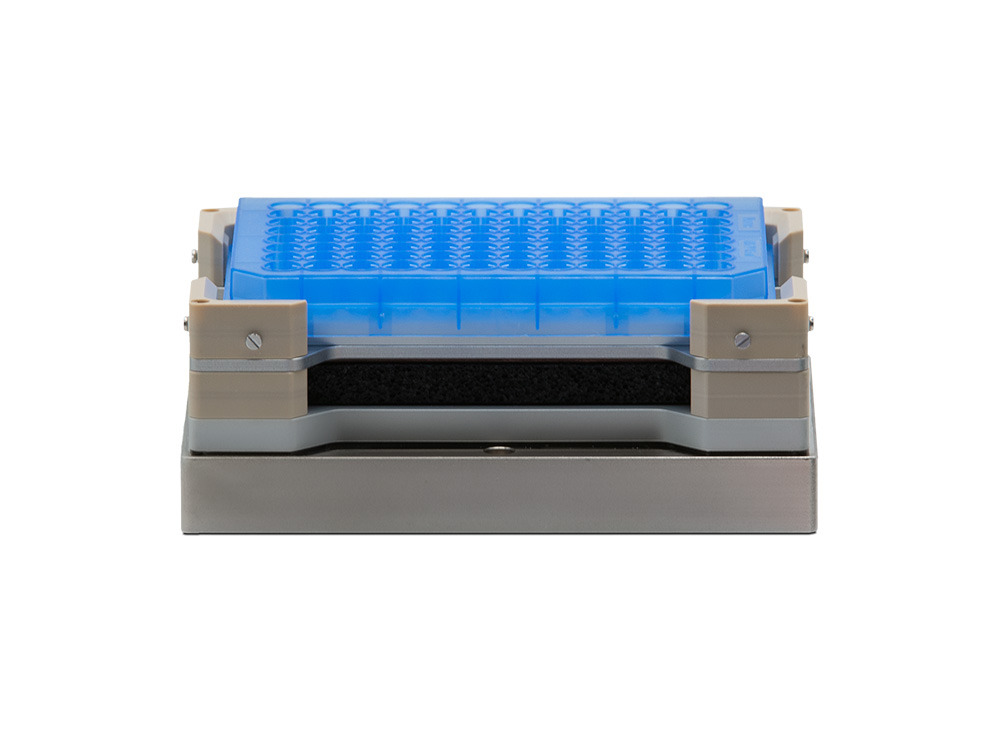

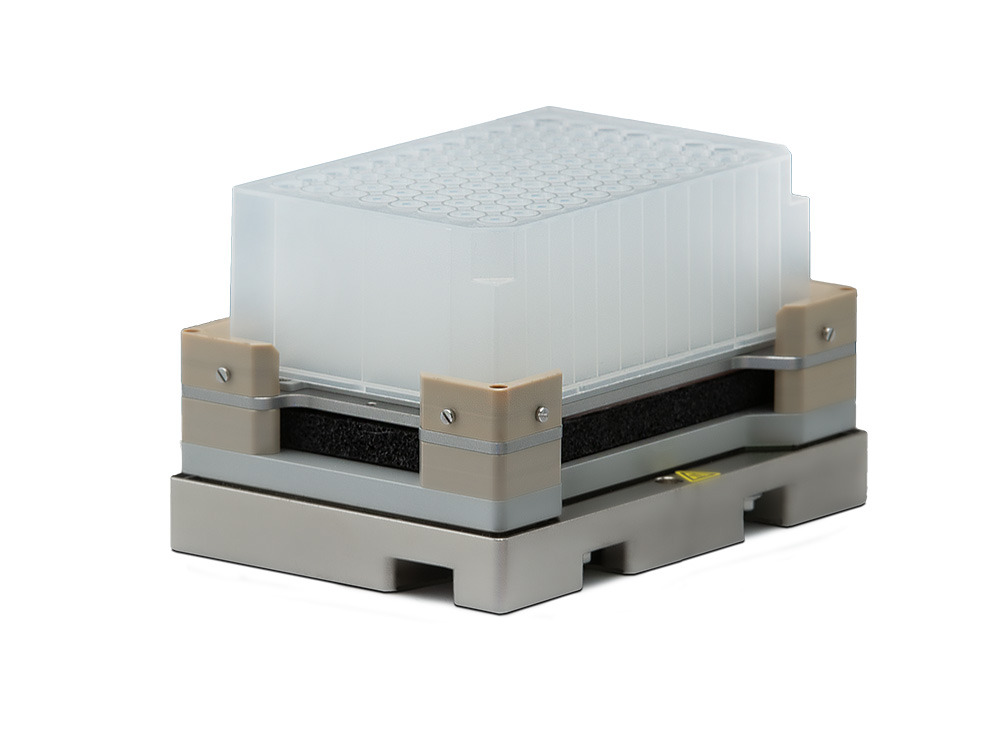

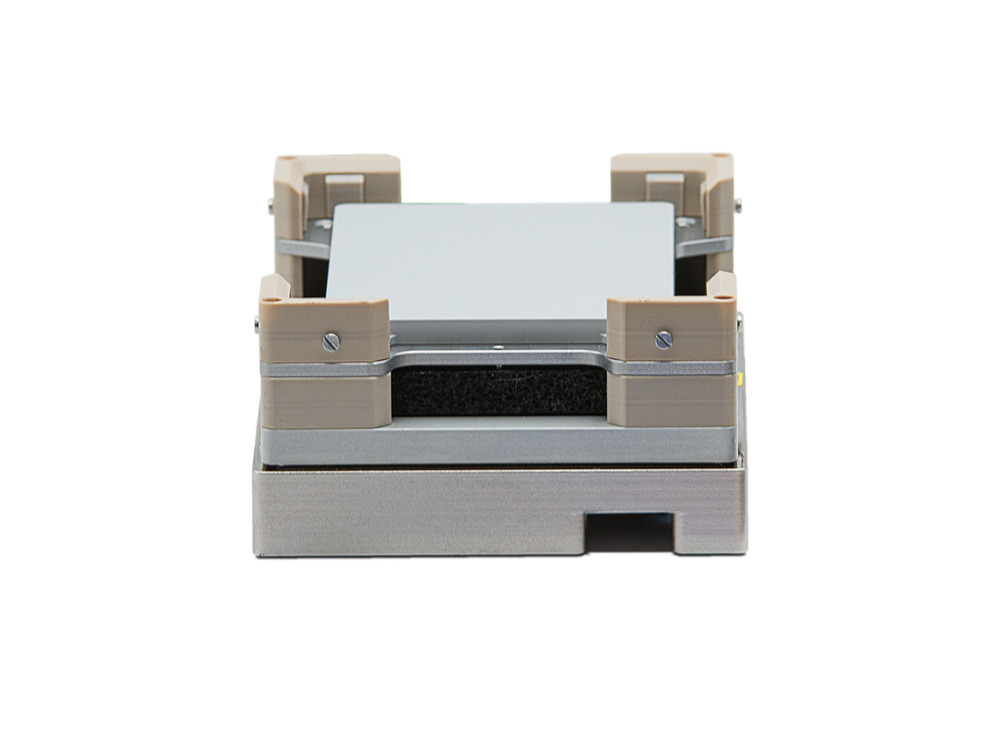

Teleshake 95
Heat and shake up to 1 kg in weight in a compact instrument that integrates with all major workflows and applications.
A combined heater-shaker delivers efficiency, precision and cost effectiveness to your sample preparation.Easy Integration into robotic workflows
- takes up significantly less space in the workflow and around
- can be powered either by the liquid handling system directly or from a separate 24 V power supply
- shakes samples of up to 1 kg in weight
- operates in a temperature range of 5 K above ambient to 125°C, and delivers excellent performance with accuracy at 37°C of ± 0.3°C and uniformity at 37°C of ± 0.2°C
- can be variably set with rotation speeds starting at 1 rpm moving up to a max of 2,000 rpm
- zero-positioning function
- available with 2mm and 3mm amplitude
- orbital, diagonal or linear shaking possible
- plates are securely fixed during shaking with a mechanism that is easily adaptable for different plate formats
- can be used with your disposables including vials and reservoirs, for optimized heat transfer Inheco offers over 200 adapters, manufactured in house
- designed, engineered and made in Germany, rigorous quality control
- global two-year warranty and full customer service including remote support, diagnostic and servicing options
Technical Specifications Teleshake 95
| Teleshake 95 - 7100136 | |
|---|---|
| Input voltage / max. current | 24 Vdc / 4.8 A |
| Limits for operating ambient temperature | +15 °C to +32 °C [+59 °F to 89.6 °F] |
| Maximum load of the shaker platform | 1.0 kg (see also performance curve) |
| Shaker frequency. Masses above 20g reduce the max. speed | 100 to 1800 rpm (see also performance curve) |
| Shaking amplitude | 2 mm [0.07874 in] |
| Shaking direction | Orbital, diagonal or linear |
| O-position accuracy | ± 0.1 mm [± 0.00394 in] |
| Outer dimensions. Length x width x height | 146 mm x 103 mm x 55 mm [5.75 in x 4.06 in x 2.165 in] |
| Protection Category | IP 32 |
| Weight including cables | 2.5 kg [5.51 lbs] |
| Temperature control | Ambient to +125 °C (+257 °F) *1) |
1) 5 K above ambient
| Environmental conditions | |
|---|---|
| Tolerable relative humidity: | |
| Operation | 30-80% relative |
| Transportation and storage | 10-80% relative |
| Temperature: | |
| Operation | +15 °C to +32 °C (+59 °F to 90 °F) |
| Transportation and storage | -10 °C to + 60 °C (+14 °F to 140 °F) |
| Movement pattern | Max. shaking frequency [Hz] with microplate 96 depending on movement pattern |
|---|---|
| n,w,s,e | 1800 |
| n,e,s,w | 1800 |
| nw, se, | 700 |
| ne, sw | 700 |
| n,s, | 650 |
| e, w | 650 |
Why use a thermal cycler?
Labs use a thermal cycler (or thermocycler, PCR machine, DNA amplifier) to put samples though repeated cycles of two temperature extremes. It is frequently used to amplify segments of DNA using the polymerase chain reaction (PCR). Thermal cyclers are also used in laboratories to enable other temperature-sensitive reactions, including restriction enzyme digestion and rapid diagnostics.It works by precisely raising and lowering the temperature of its thermal block. Samples (in tubes) sit in wells in the block and are heated and cooled by the block.
What to look for in a thermal cycler
For PCR and other uses, the thermal cycler must be able to deliver exactly the same changes in temperature for every sample in a run, and for every run.
- Temperature uniformity - delivering identical temperature across the entire block, with identical results for samples in the middle or on the edge of the block, and throughout the run.
- Temperature accuracy - ensuring accurate and stable, reproduceable temperatures for the duration of the run, and for every sample in the block.
- Uniformity and accuracy during open-drawer operations - enabling pipetting and enzyme introductions whenever needed, with negligible effect.
- Rapid uniform temperature change (ramp rates) - reaching required temperatures as rapidly as possible whilst maintaining temperature uniformity across the entire block.
- Sample integrity and contaminant reduction - by enclosing and sealing the batch during the run.
- Minimized start-up and boot times - combined with rapid ramp rates so laboratories can complete significantly more batches per day.
- Small footprint - delivering the required performance while taking up as little space in the workflow as possible.
- Flexible positioning - with few, if any, restrictions on placement due to the thermal cycler’s air venting or obstruction of the workflow arm.
Use of the Inheco ODTC® thermal cycler
The ODTC® is used in the PCR process (polymerase chain reaction), to amplify a gene sequence in a sample. The amplification follows an exponential curve, so that after several temperature cycles several million replicates are present in the sample. This high number is required for various detection methods, as the sensors of the measurement/detection systems only respond when there is sufficient signal-to-noise rate.The ODTC® is also used for NGS (Next Generation Sequencing). The reading of the gene segment, i.e., the sequence in which the base pairs (ATGC) occur, is carried out by the sequencer, but in order for this to be able to process the sample, it’s necessary to prepare (or enrich) a sample of the gene segment using PCR.
The ODTC® is ideal for gene analysis. As gene analysis is used in more diagnostic procedures as well as in research work it requires automation, and the ODTC® is optimized for use in highly automated environments.
Reliable heating and shaking
ShakingThe Teleshake 95 shakes using an electromagnetic motor.
- Orbital and linear shaking patterns
- 100 rpm to 1800 rpm
- 2 mm amplitude
- Anti-spillage
- Anti-vibration
- Ideal frequency for 96 & 384 plates
The Teleshake 95 heats using a heating foil.
- Temperature range: from ambient +5 K to +125 °C
- Accuracy at 37 °C target temperature ± 0.3 °C
- Uniformity at 37 °C target temperature ±0.2 °C
Software

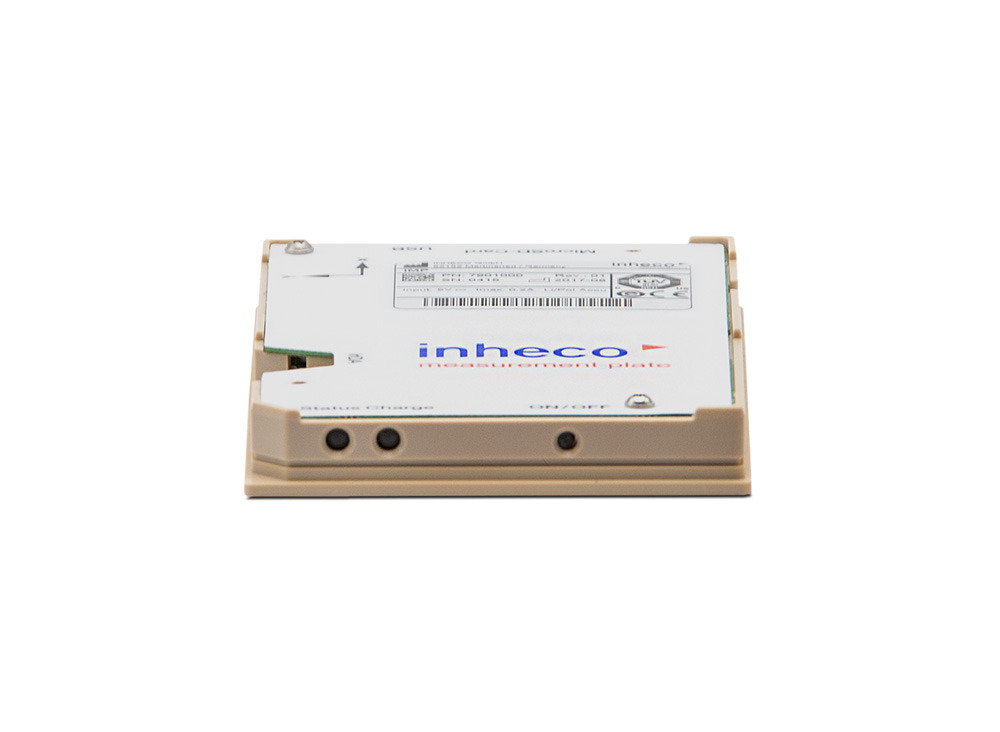

The Inheco measurement plate (IMP) is a stand-alone verification tool which enables wireless verification of temperature, humidity and shaking pattern. So, when long term consistency and accuracy are critical, you can easily monitor and measure the performance of your Inheco instruments.
- API available. The Inheco Teleshake AC is quick to connect, and ready for future developments in your lab.
The Inheco measurement plate (IMP) is a stand-alone verification tool which enables wireless verification of temperature, humidity and shaking pattern. So, when long term consistency and accuracy are critical, you can easily monitor and measure the performance of your Inheco instruments.
