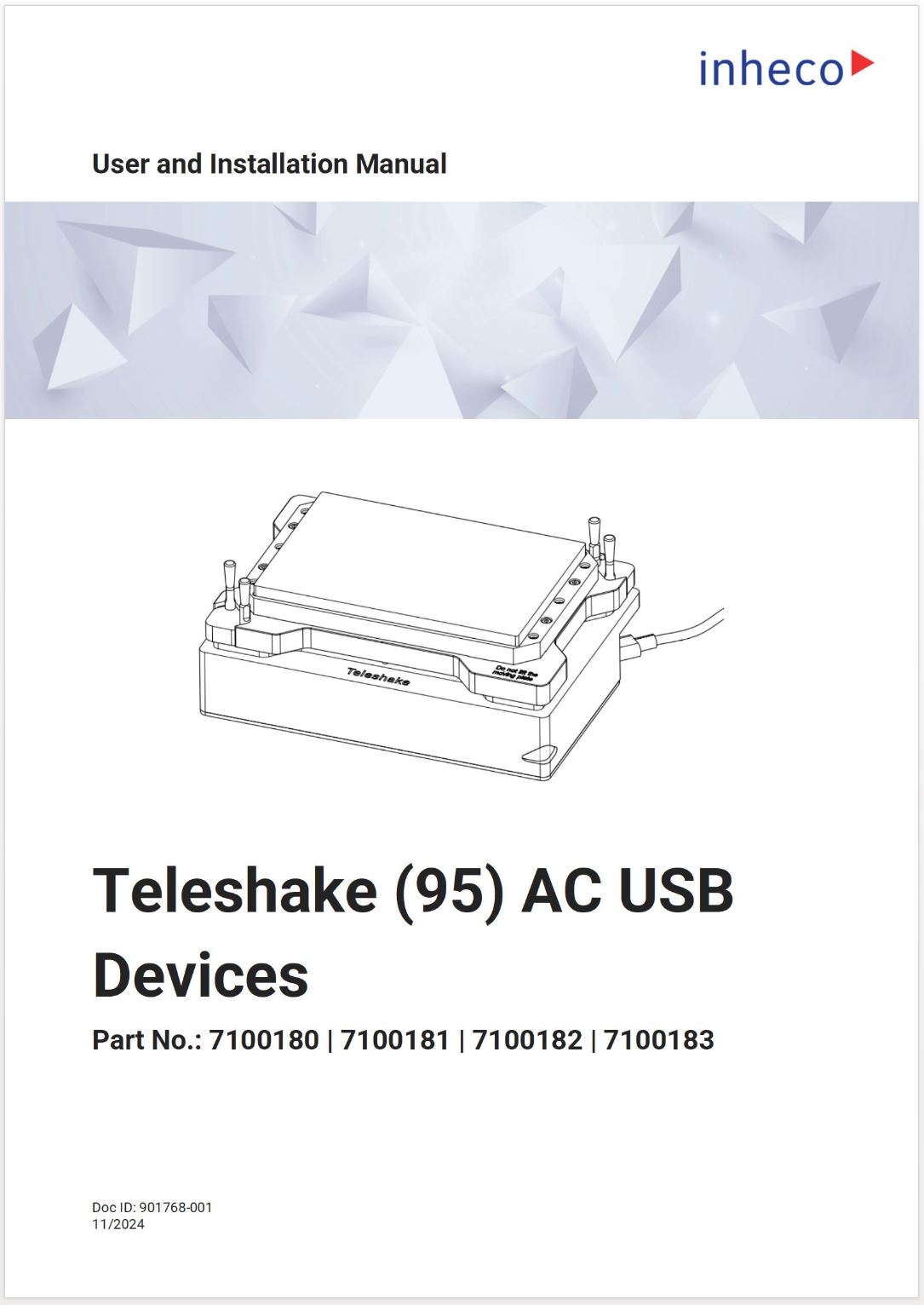

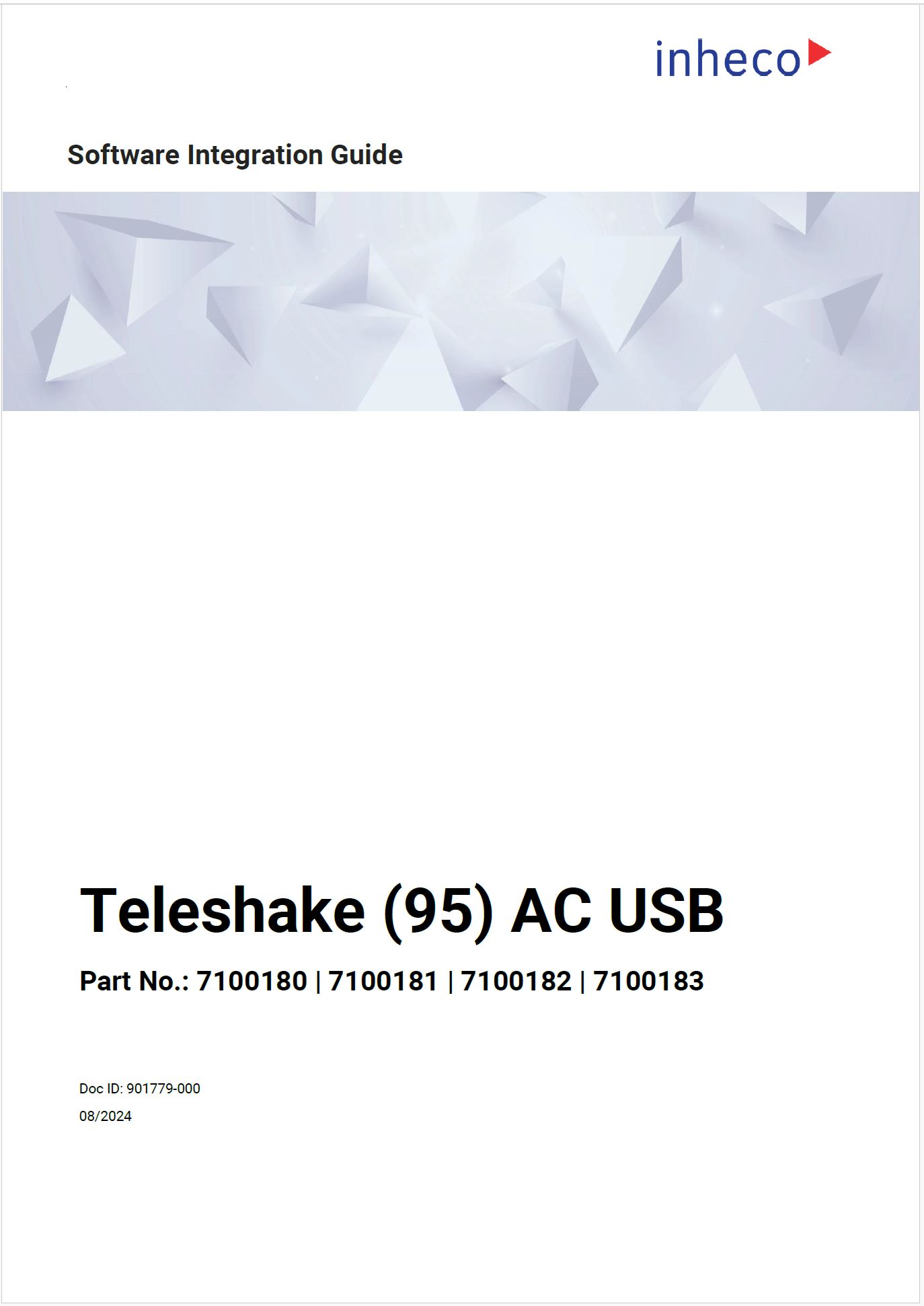

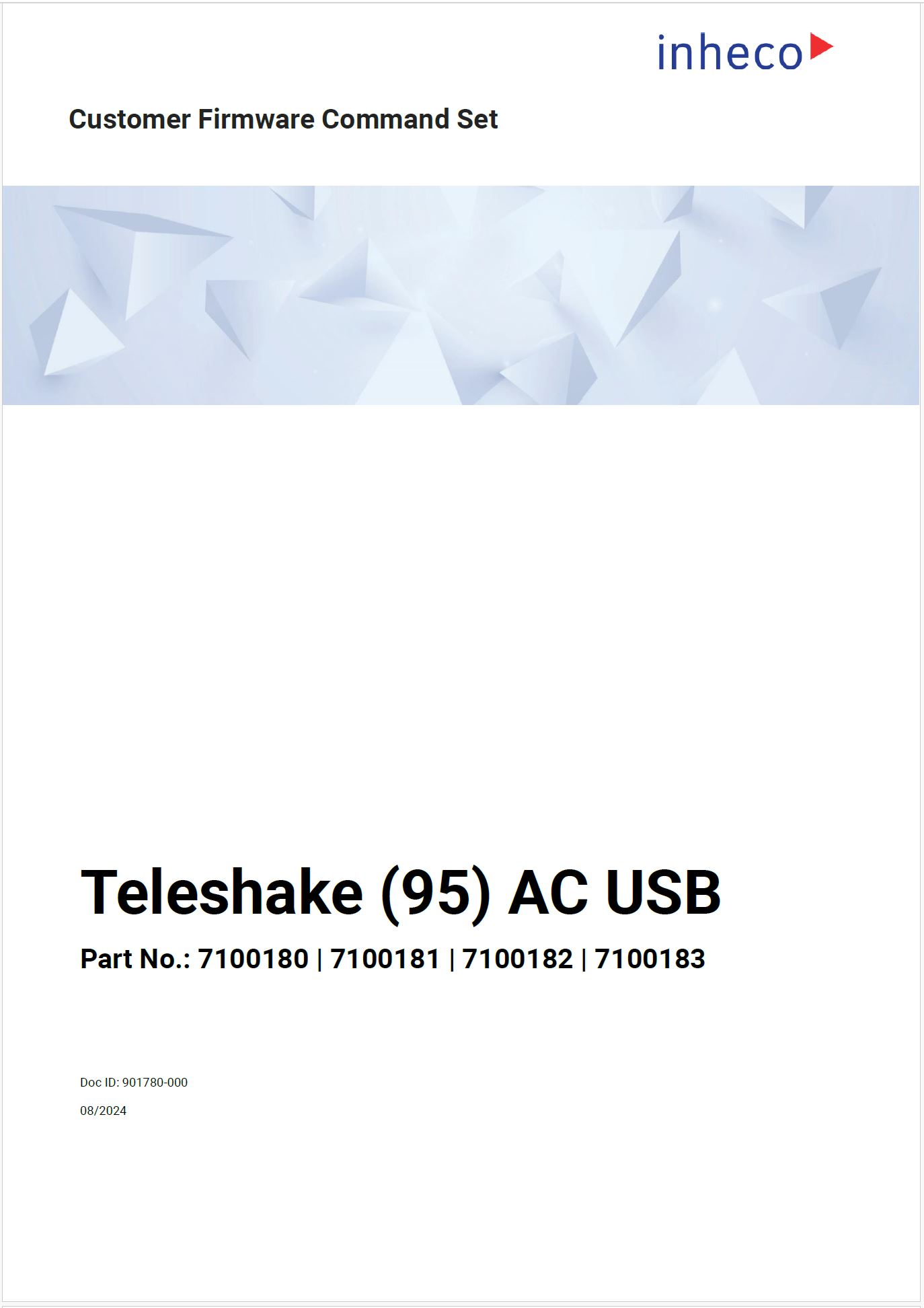

- Certificates & Manuals

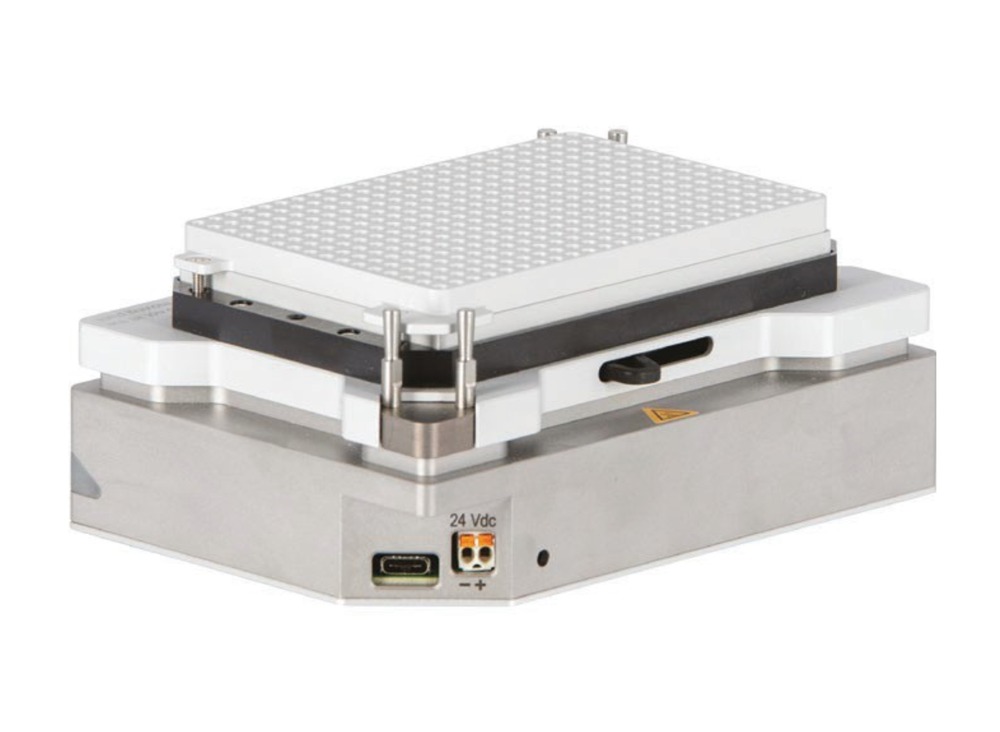

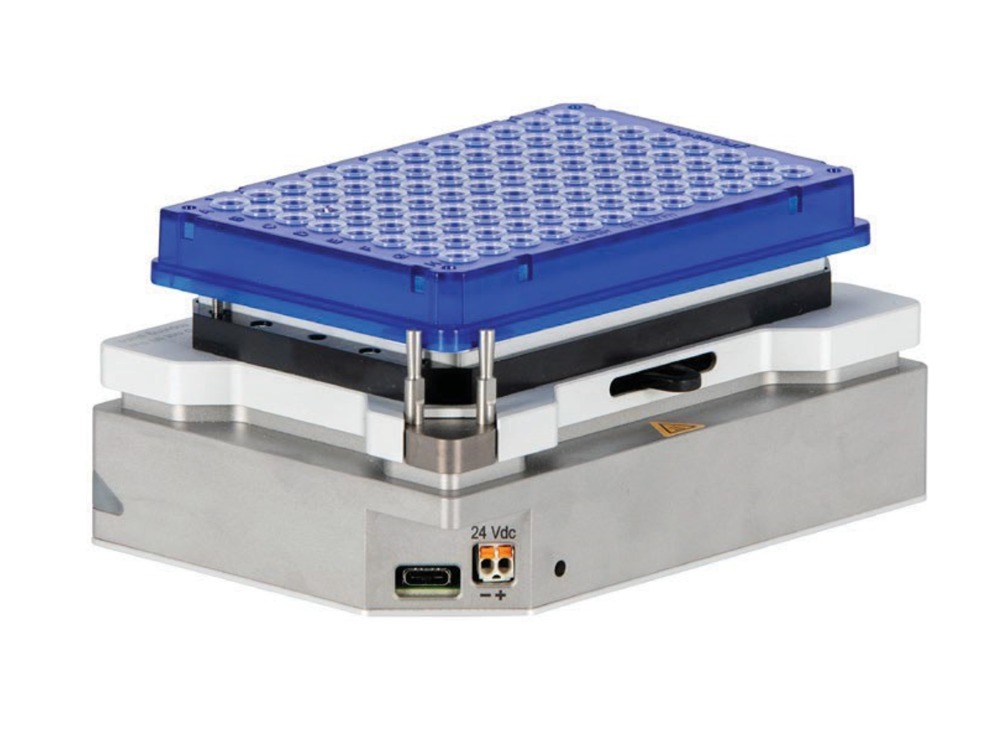

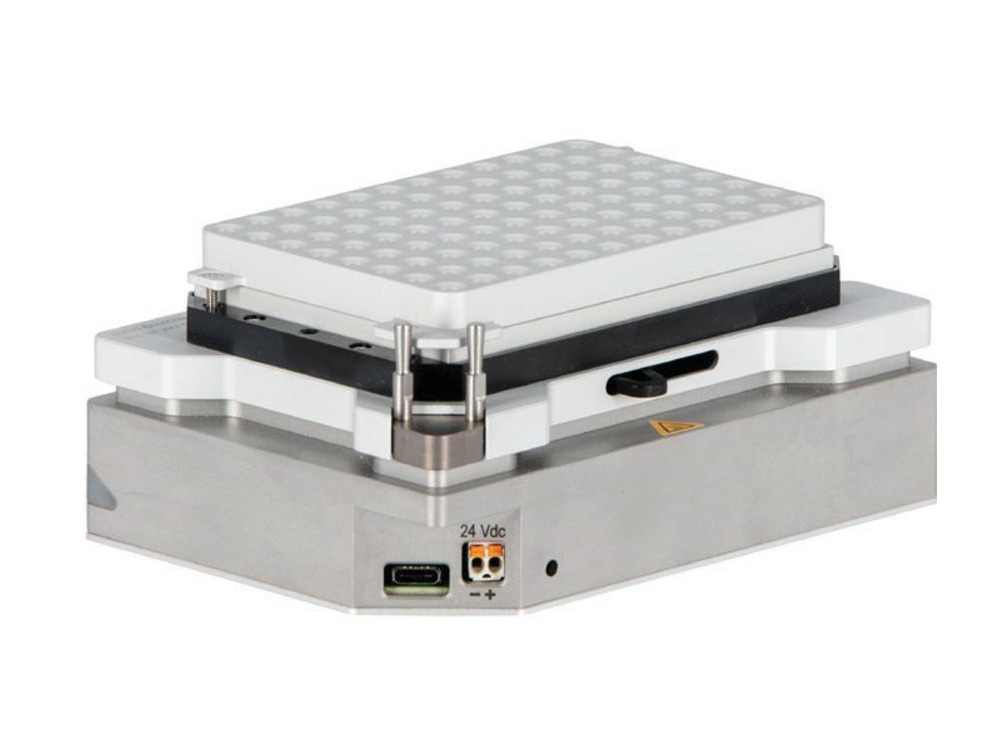

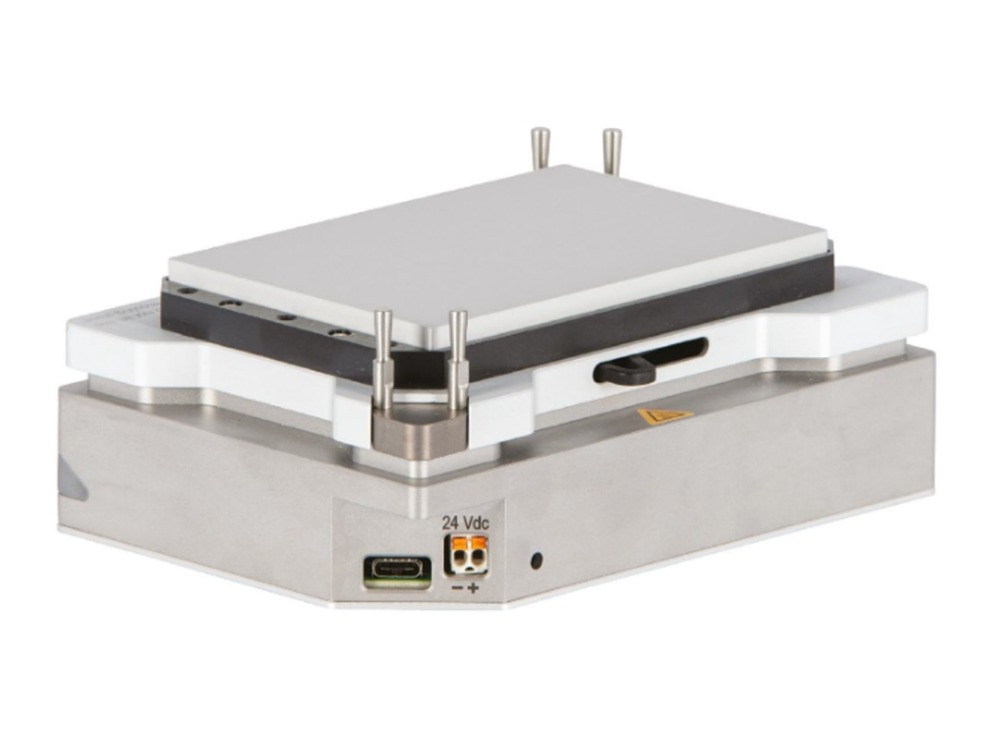

Shake samples up to 1 kg in weight in a compact instrument that integrates with all major workflows and applications.
Inheco has taken our existing class-leading Teleshake and made it easier to integrate and introduced digital performance improvements. The Teleshake AC USB is the 1st Inheco on-deck instrument to include an integrated controller, removing the need for an external controller and the associated bulky connector cables. Communication is enabled via a standard USB-Interface, enabling simple management and integration.Easy Integration into robotic workflows
- takes up significantly less space in the workflow and around
- can be powered either by the liquid handling system directly or from a separate 24 V power supply
Performance:
- shakes samples of up to 1 kg in weight
- can be variably set with rotation speeds starting at 1 rpm moving up to a max of 3,000 rpm
- digital motor delivers a zero-positioning function, zero position is adjustable by user
- allows piercing through sealing foils while keeping the plate firmly clamped
Features:
- available with 2 mm and 3 mm amplitude
- new USB interface enables simple and standardized integration and connection with controller programs and interfaces
- active clamping lets you use different plate formats without adjustment
- can be used with all of your disposables, from vials and reservoirs to lidded sample plates
- with the new status LED the status of the instrument can be instantly checked
- designed, engineered and made in Germany, rigorous quality control
- global two-year warranty and full customer service including remote support, diagnostic and servicing options
- integration software & cross-platform support
- software libraries provided are primarily developed for Windows environments and built on
- Microsoft .NET 8.0 framework

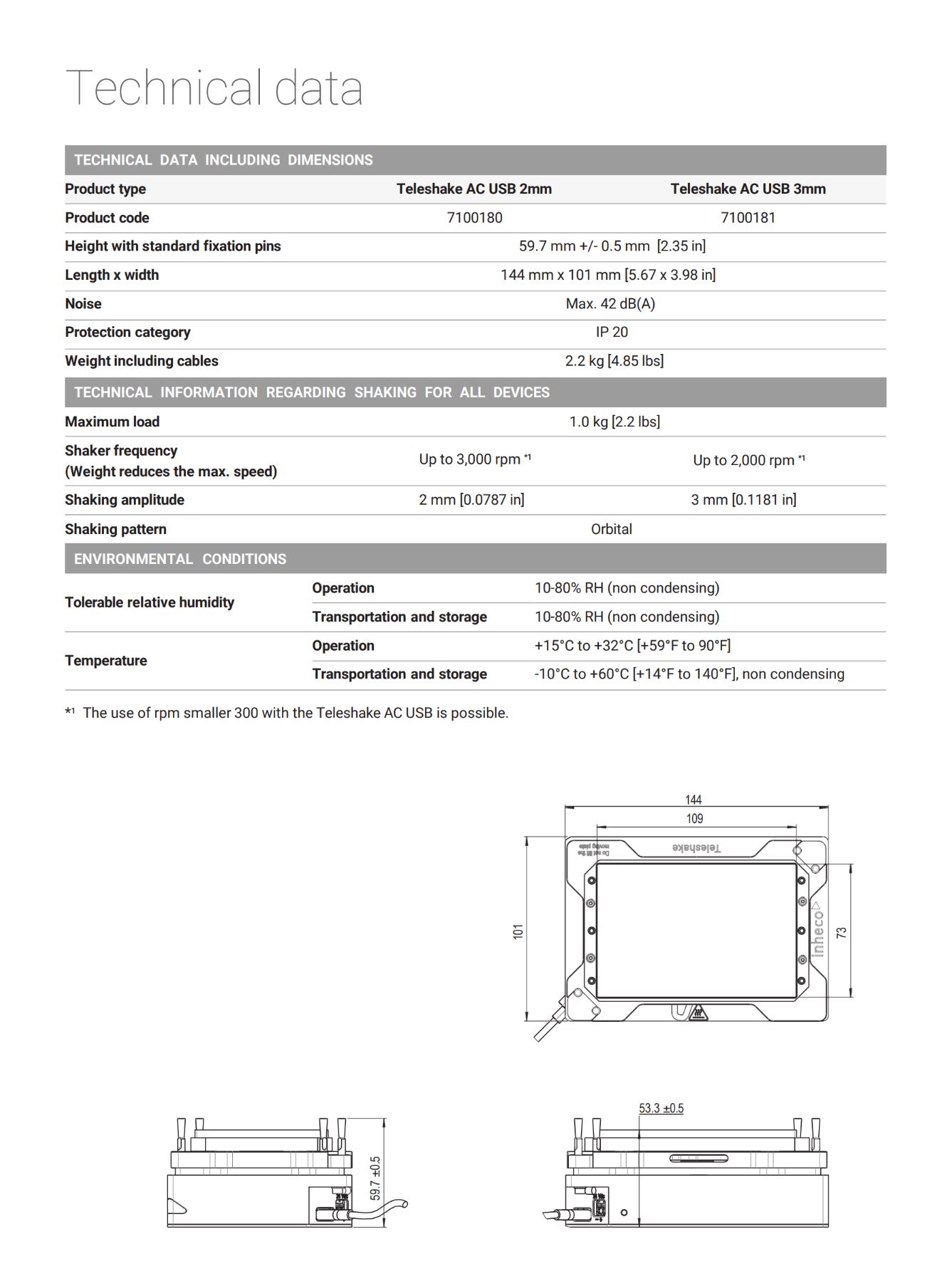

Technical Specifications Teleshake AC USB
| Teleshake AC USB | ||
|---|---|---|
| Product type | Teleshake AC USB 2mm | Teleshake AC USB 3mm |
| Part number | 7100180 | 7100181 |
| Height (bottom to contact surface) | 47.3 mm [1.862 in] | |
| Height with standard fixation pins | 59.7 mm +/- 0.5 mm [2.35 in] | |
| Length x width | 144 mm x 101 mm [5.67 x 3.98 in] | |
| Temperature range | -- | |
| Noise | Max. 42 dB(A) | |
| Protection category | IP 20 | |
| Weight including cables | 2.2 kg [4.85 lbs] | |
| Operation voltage | +24 Vdc | |
| Max current | 1.9 Amax | 6.3 Amax |
| Pollution degree | 2 (laboratory equipment) | |
| Technical information regarding shaking for all devices | ||
|---|---|---|
| Maximum load | 1.0 kg [2.2 ibs] | |
| Shaker frequency weight reduces the max. speed | Up to 3000 rpm*1 | Up to 2000 rmp*1 |
| Shaking amplitude | 2 mm [0.089 in] | 3 mm [0.118 in] |
| Shaking pattern | Orbital | |
| Environmental conditions | |
|---|---|
| Tolerable relative humidity: | |
| Operation | 10-80% RH (non condensing) |
| Transportation and storage | 10-80% RH (non condensing) |
| Temperature: | |
| Operation | +15 °C to +32 °C [+59 °F to 90 °F] |
| Transportation and storage | -10 °C to +60 °C [+14 °F to 140 °F], non condensing |
*1 The use of rpm smaller 300 with the Teleshake 95 AC USB is possible.

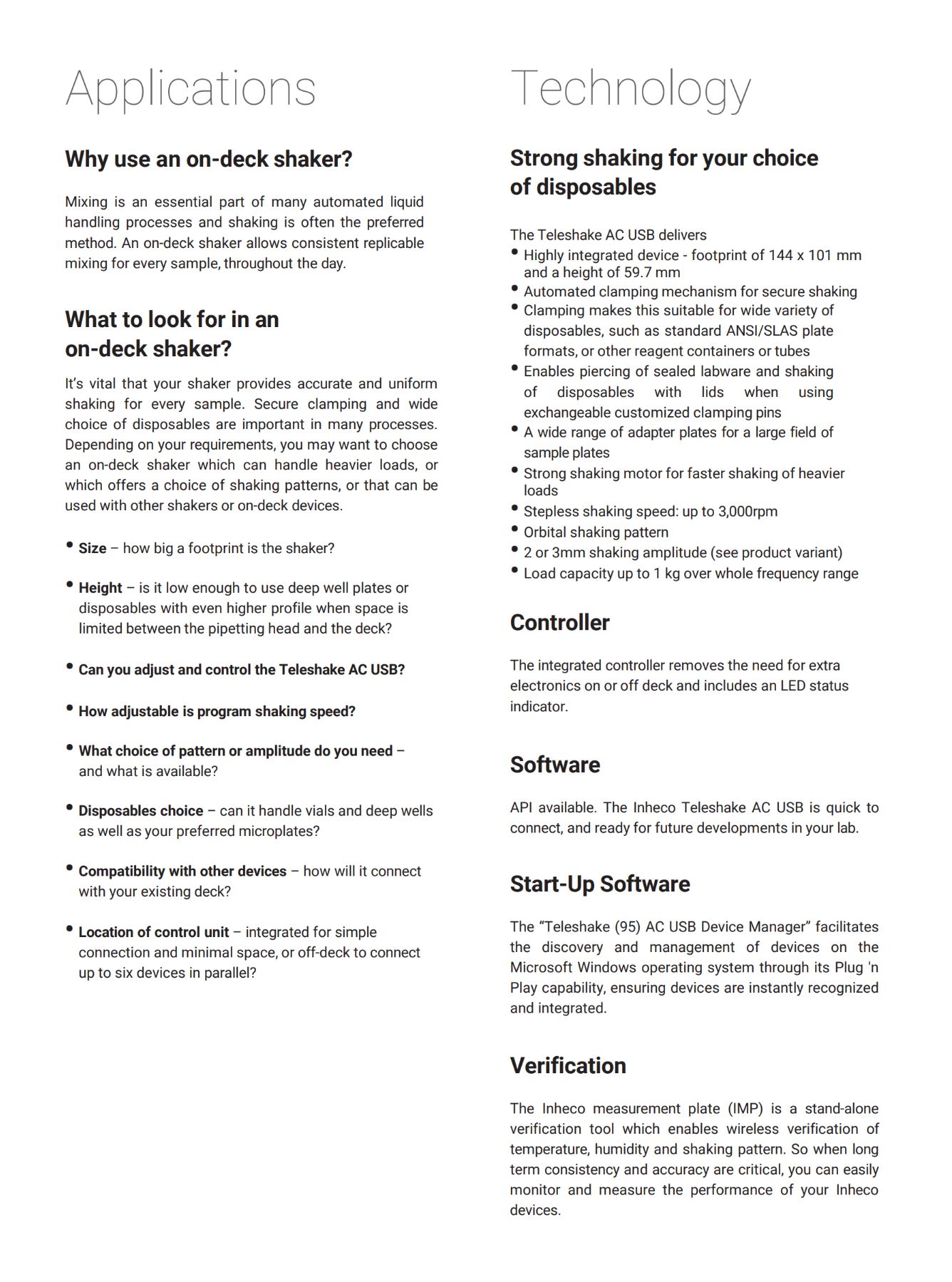

Why use an on-deck shaker?
Mixing is an essential part of many automated liquid handling processes and shaking is often the preferred method. An on-deck shaker allows consistent replicable mixing for every sample, throughout the day.What to look for in a combined heater-shaker?
It’s vital that your shaker provides accurate and uniform shaking for every sample. Secure clamping and wide choice of disposables are important in many processes. Depending on your requirements, you may want to choose an on-deck shaker which can handle heavier loads, offer a choice of shaking patterns, or be used with other shakers or on-deck instruments.
- Size - how big a footprint is the shaker?
- Height - is it low enough to use deep well plates or disposables with an even higher profile when space is limited between the pipetting head and the workflow?
- Can you adjust and control the Teleshake AC USB?
- How adjustable is the programmed shaking speed?
- What choice of pattern or amplitude do you need - and what is available?
- Disposables choice - can it handle vials and deep wells as well as your preferred microplates?
- Compatibility with other devices - how will it connect with your existing deck?
- Location of control unit - integrated for simple connection and minimal space, or off-deck to connect up to six devices in parallel?
Strong shaking for your choice of disposables
Strong shaking for your choice of disposables

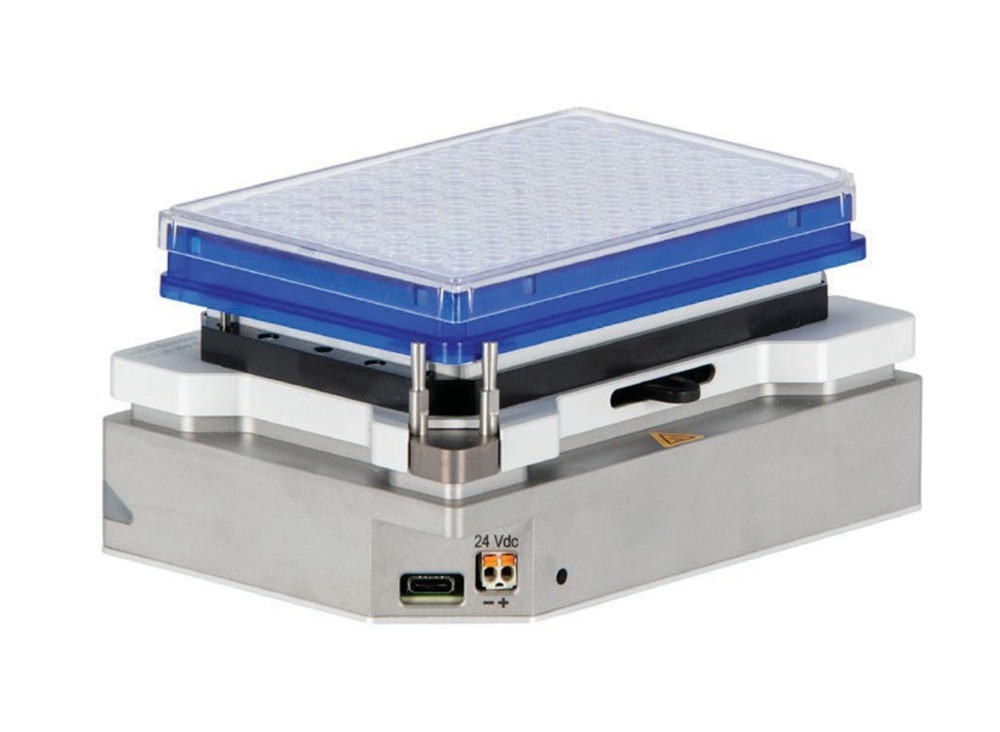

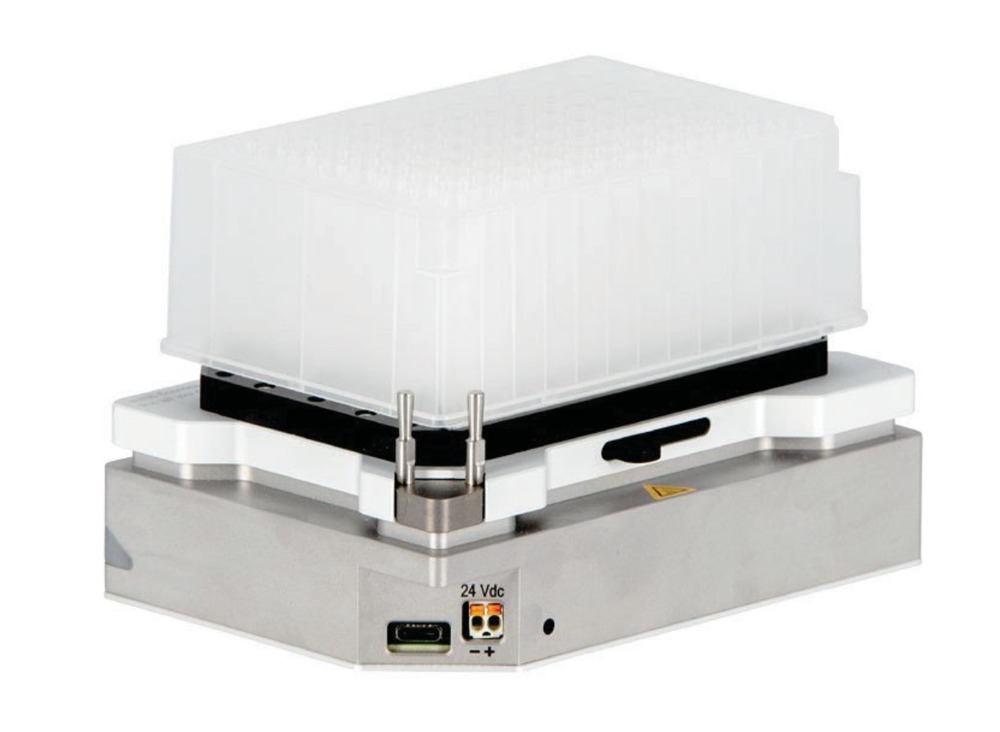

- Highly integrated instrument - footprint of 144 x 101 mm and a height of 59.7 mm
- Automated clamping mechanism for secure shaking
- Clamping makes this suitable for a wide variety of disposables, such as standard ANSI/SLAS plate formats, or other reagent containers or tubes
- Enables piercing of sealed labware and shaking of disposables with lids when using exchangeable customized clamping pins
- A wide range of adapter plates for a large field of sample plates
- Strong shaking motor for faster shaking of heavier loads
- Stepless shaking speed: up to 3,000 rpm
- Orbital shaking pattern
- 2 or 3 mm shaking amplitude (see product variant)
- Load capacity up to 1 kg over whole frequency range
Controller
The integrated controller removes the need for extra electronics on or off deck and includes an LED status indicator.
Software
API available. The Inheco Teleshake AC USB is quick to connect and ready for future developments in your lab.
Verification
The Inheco Measurement Plate (IMP) is a stand-alone verification tool which enables wireless verification of temperature, humidity and shaking pattern. So when long-term consistency and accuracy are critical, you can easily monitor and measure the performance of your Inheco instruments.
Start-Up Software

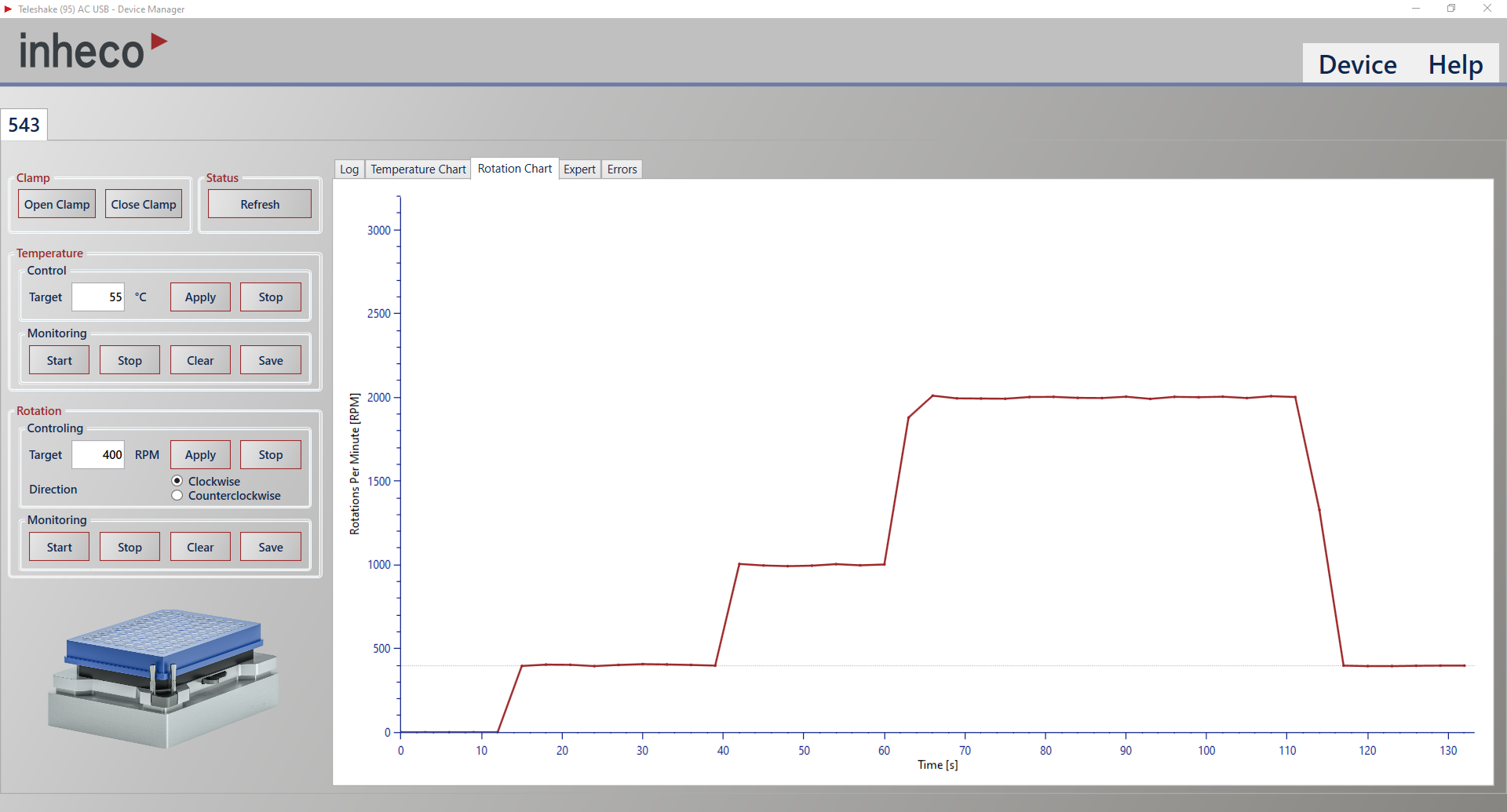

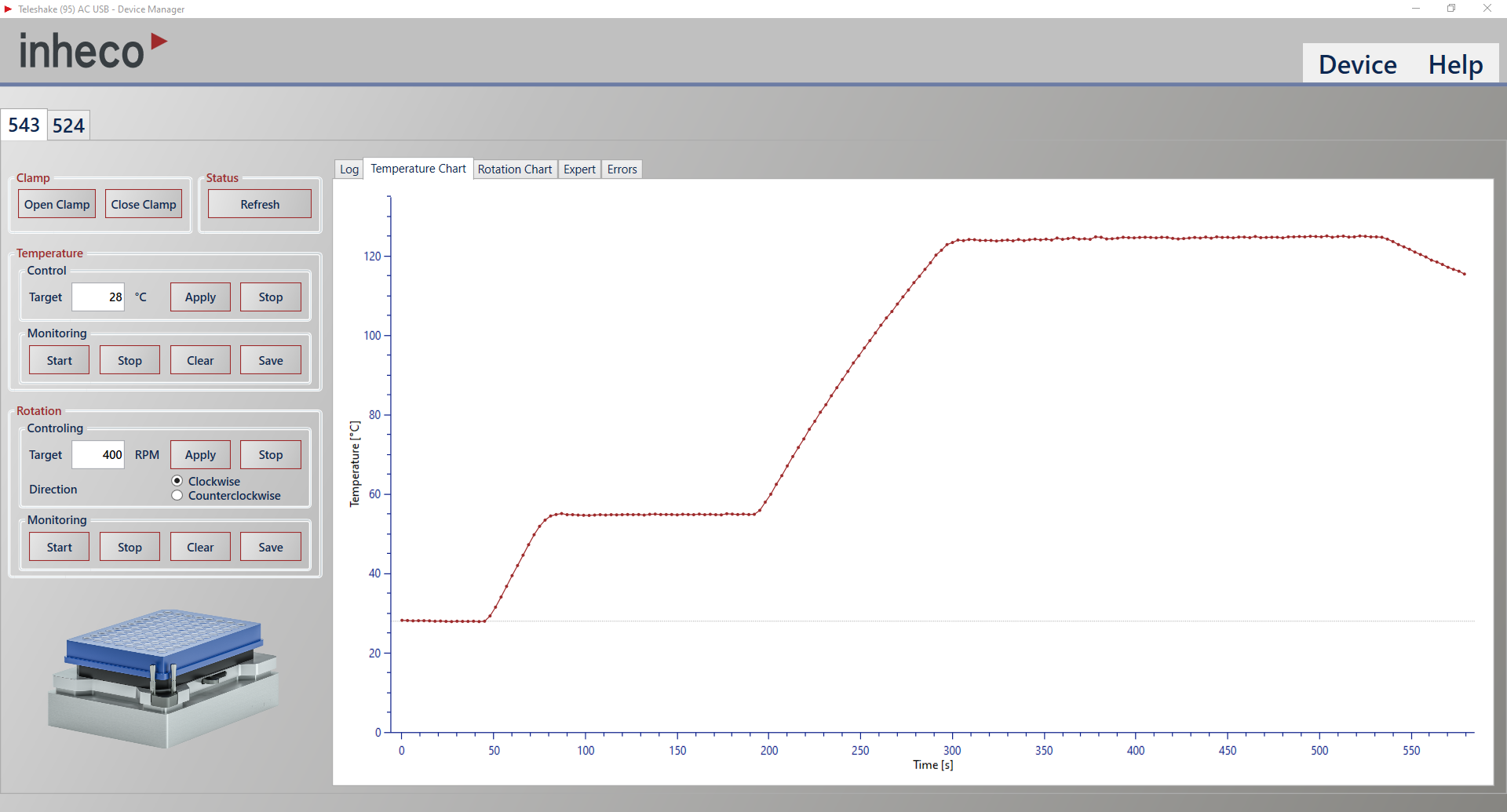

The “Teleshake AC USB Device Manager” facilitates the discovery and management of devices on the Microsoft Windows operating system through its Plug and Play capability, ensuring devices are instantly recognized and integrated.
The integrated controller removes the need for extra electronics on or off deck and includes an LED status indicator.
Software
API available. The Inheco Teleshake AC USB is quick to connect and ready for future developments in your lab.
Verification
The Inheco Measurement Plate (IMP) is a stand-alone verification tool which enables wireless verification of temperature, humidity and shaking pattern. So when long-term consistency and accuracy are critical, you can easily monitor and measure the performance of your Inheco instruments.
Start-Up Software
The “Teleshake AC USB Device Manager” facilitates the discovery and management of devices on the Microsoft Windows operating system through its Plug and Play capability, ensuring devices are instantly recognized and integrated.
