Inheco.One Measurement Plate
Precision Validation for Laboratory Systems

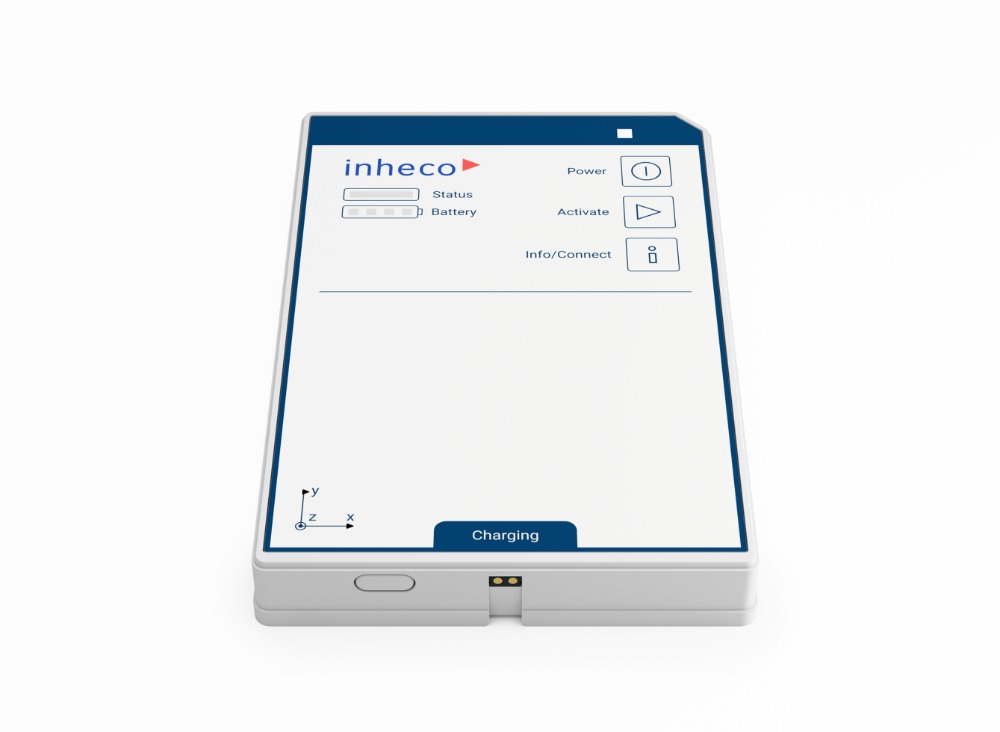

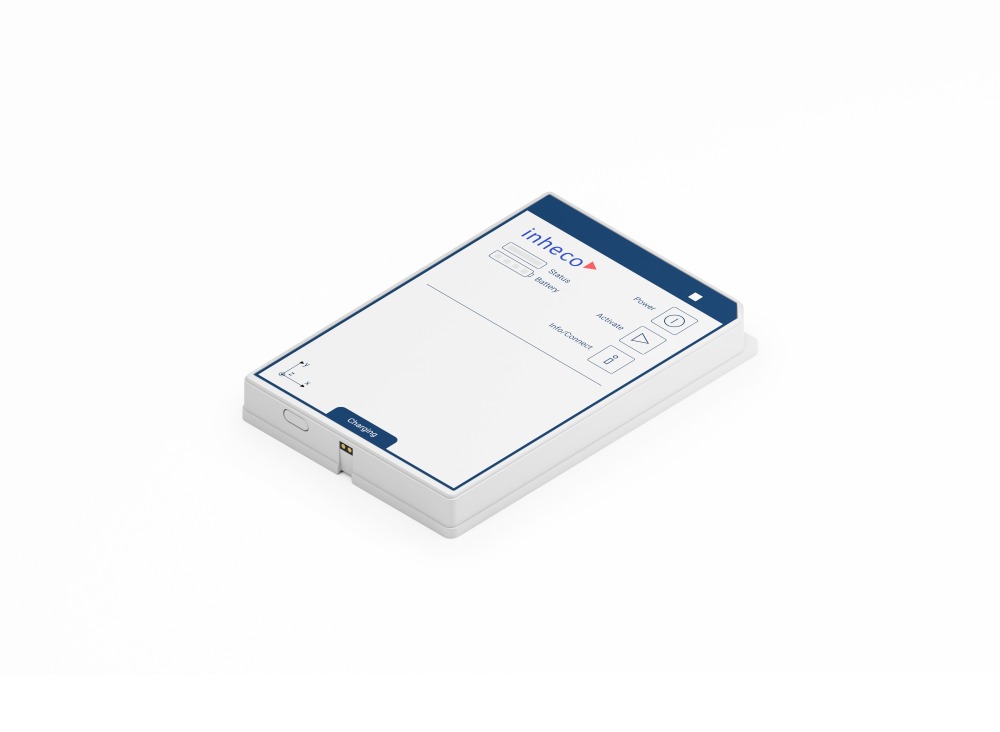

The Inheco.One MeasurementPlate is a flexible validation and measurement tool designed to assess key environmental and performance parameters in laboratory instruments and systems. It enables precise measurement of temperature accuracy and uniformity, relative humidity, CO₂ concentration, barometric pressure, vibration/shaker performance, and light intensity.Suitable for use in both open and enclosed systems, the measuring plate supports verification, calibration, Installation Qualification (IQ), and Operational Qualification (OQ) workflows across both Inheco and third‑party instruments.
Designed for modern lab environments, the measuring plate can be seamlessly integrated into automated processes and digital workflows, enabling efficient, reproducible, and scalable equipment qualification.
The Inheco.One Measurement Plate supports a broad range of applications, including:
- Verification and calibration
- Installation Qualification (IQ)
- Operational Qualification (OQ)
- Maintenance and Quality checks
Performance
- Measures temperature accuracy and uniformity, relative humidity, CO₂ concentration, barometric pressure, vibration/shaker performance, and light intensity
- Can be used for heating and cooling modules, incubators and CO₂ incubator shakers and mixing platforms, plate readers and microscopy systems
Features
- High-precision multi-parameter measurement in a single device
- Seamless integration into automated lab workflows
- Compatible with both Inheco instruments and third-party laboratory equipment
- Automated data acquisition and documentation
Reliable and supported
We recommend an annual re-calibration from an accredited calibration laboratory for your IMP. Contact Inheco tech support to arrange re-calibration.
Every Inheco accessory is designed, engineered and made in Germany and undergoes rigorous quality control before delivery. It comes with a global two-year warranty and full customer service including remote support, diagnostic and servicing options that focusses on minimizing operational downtime.
Technical Specifications Inheco.One MeasurementPlate
| Measurement Plate (without docking station) | |
|---|---|
| Product Number | 12000000 |
| Length | 127.76 mm (5.030 in) |
| Width | 85.48 mm (3.365 in) |
| Height | 14.80 mm (0.583 in) |
| Weight | 120g |
| Input Voltage | 5 Vdc |
| Input Current | 100 mA (during charging) |
| Temperature Range (on open instrument) | +4°C to + 100°C [39.2°F to 212°F] |
| Temperature Range (in closed instrument) | +4°C to + 60°C [39.2°F to 140°F] |
| Temperature Sensors | 10 digital sensors |
| Ambient Temperature Sensor | 1 digital sensor |
| Humidity Sensors | 0-100% rH |
| Acceleration Sensor (3 axis) | Max. ± 16g |
| CO2 Senor Range | 0 - 20% |
| Light Sensor Range | 0 - 20000 lux |
| Barometric Pressure Sensor Range | 700 - 1200 hPa |
| Max. Battery Run-Time | 3 days (with Bluetooth connection), 10 days (without Bluetooth connection) |
| USB Interface | USB-C |
| Data Transfer to Docking Station | Bluetooth |

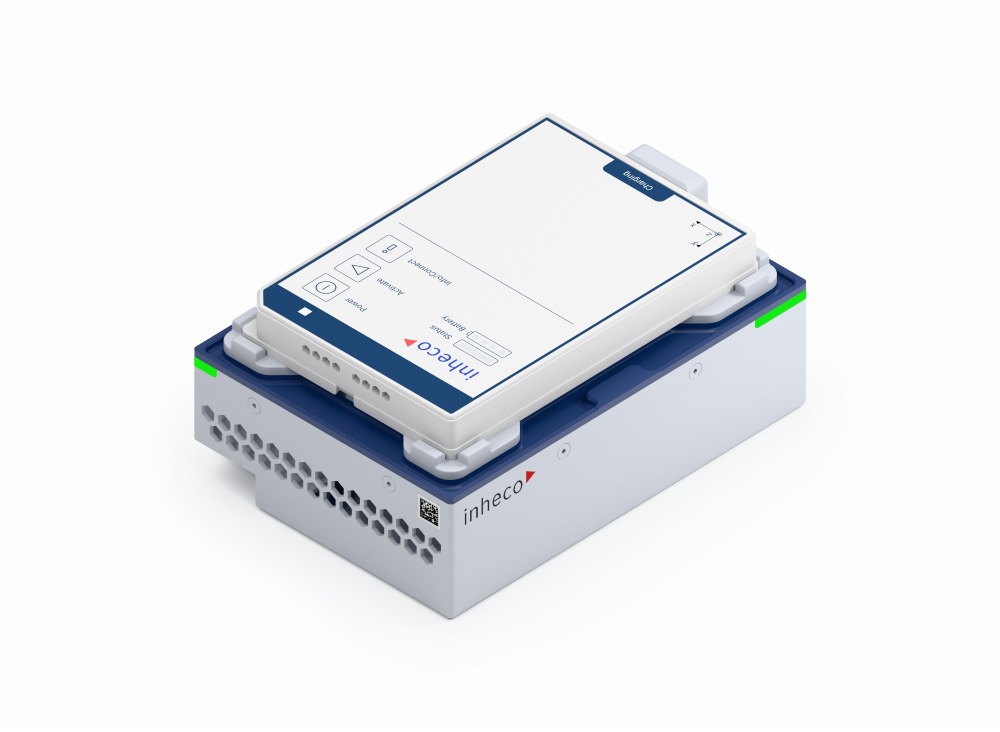

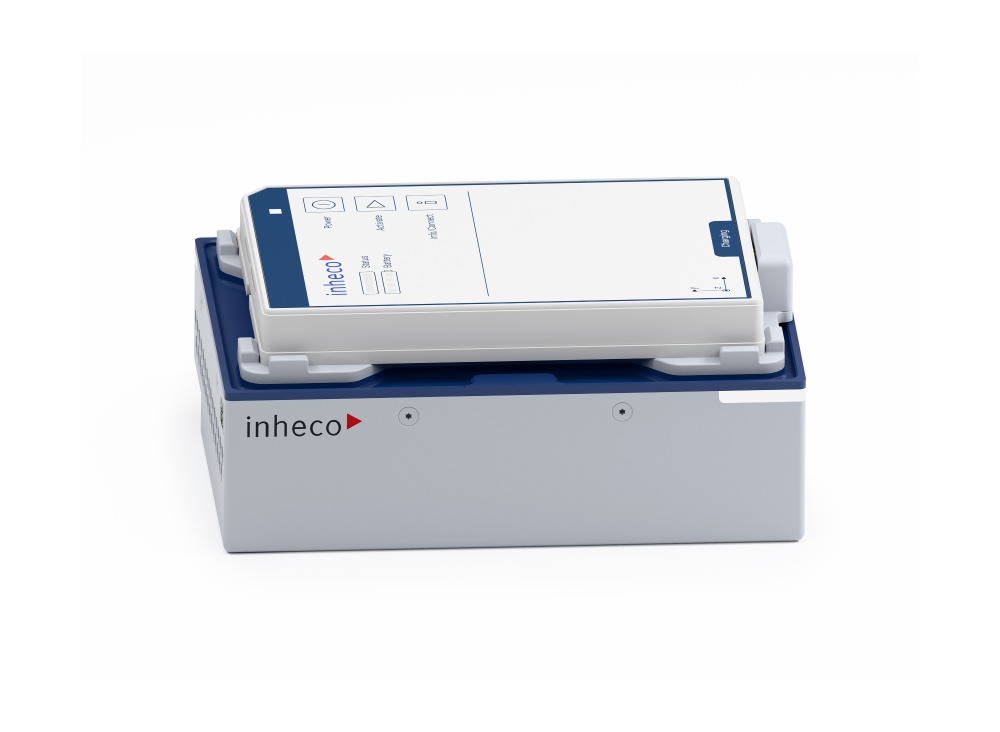

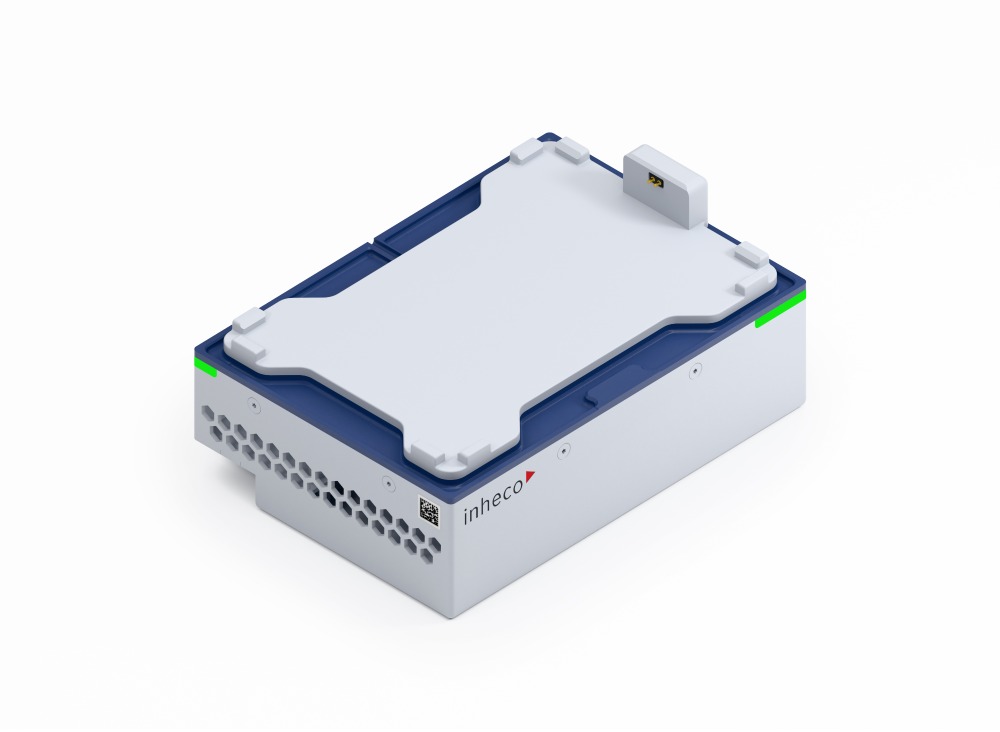

| Inheco.One Docking Station | |
|---|---|
| Length | 147mm [5.787 in] |
| Width | 104mm [4.094 in] |
| Height | 60.8mm [2.393 in] |
| Weight | 450g |
| Input Voltage | 100 to 240 Vac |
| Input Current | 0.2 A |
| Output Voltage | 5 Vdc |
| Interface | Ethernet (SiLA2) |
| Data transfer to Inheco.One MeasurementPlate | Bluetooth |
| Specifications | |
| Temperature Accuracy | ± 0.1K |
| Temperature Precision of one sensor | ± 0.03K |
| Temperature Uniformity (calibrated) | ± 0.1 K (mean value of all 10 sensord) |
| Accuracy Shaking Amplitude | ± 10% |
| Accuracy Shaking rpm | ± 5% |
| Accuracy rH 11% - 90% | ± 2% |
| Accuracy rH 1 - 10%, 91% - 100% | ± 4% |
| Accuracy CO2 | ± 0.5% (absolute) |
| Accuracy Barometric Pressure | ± 5 hPA |
| Accuracy Light Intensity | 5 lux |
| Environmental Conditions Operation | |
| Temperature | +4°C to + 60°C [39.2°F to 140°F] |
| Relative Humidity | 100% non condensing |
| Height | 2000m [6562ft] |
| Transport and Storage Conditions | |
| Temperature | -10°C to + 60°C [10°F to 140°F] |
| Relative Humidity | 80% non condensing |
