Inheco TEC Controllers and Slot Modules

Control and connect your Inheco devices

Inheco’s TEC control units are required to control your Inheco on-deck heating/cooling and shaking devices. They combine a power supply and controller in one small unit.

VERSATILE
Inheco controllers control temperature and shaking and measure ambient temperature and humidity as well as supplying power to your devices. Use them with all Inheco on-deck heating/cooling and shaking devices that need separate control units, and up to six in parallel. Including CPAC, CPLC, HeatPAC, Heated Lid, Thermoshake, Teleshake 95, Teleshake 95 AC and Teleshake AC. Optional for the Teleshake and Teleshake 1536.

THREE CONTROL UNIT VARIANTS
We offer 3 options for control units:
  • The Inheco Single TEC Control (STC) unit controls one device.
  • The Inheco Multi TEC Control (MTC) unit can control up to 6 Inheco devices in parallel.
  • Where space is at a premium, the compact MTC controls up to 6 Inheco devices whilst minimizing the overall footprint.
  • All Inheco TEC units sit off deck, leaving you more deck space while reducing noise and temperature.
EASY TO INTEGRATE
All Inheco control units come ready to use with command sequences, base drivers and APIs, ready for seamless integration into your liquid handling workstation. They can also be used as stand-alone units.

The MTC (185 mm x 249 mm x 264 mm) and STC (147 mm x 224 mm x 177 mm) include a touch screen, a power supply for worldwide use and a USB interface for easy robotic integration. They can be operated manually using the touch screen, or through the USB interface in automated systems. The controller’s software and firmware allow programming of complex temperature and shaking sequences. The MTC Compact has the same USB interface, software and firmware with a lower profile (300 mm x 260 mm x 100 mm), and no touchscreen, for automation projects with limited space.

THREE SLOT MODULE VARIANTS
Slot modules are required to drive the Inheco devices. When ordered together with the controller, they come pre-installed and are easy to swap and install. We currently offer three types of slot modules based on the device in use:
  • Blue – CPAC
  • Black – CPAC HT 2-TEC, Teleshake 95, Thermoshake, HeatPAC, Heated Lid
  • Yellow – Thermoshake AC
RELIABLE AND SUPPORTED
Every Inheco accessory is designed, engineered and made in Germany and undergoes rigorous quality control before delivery. It comes with a global two-year warranty and full customer service including remote support, diagnostic and servicing options that focusses on minimizing operational downtime.





Inheco

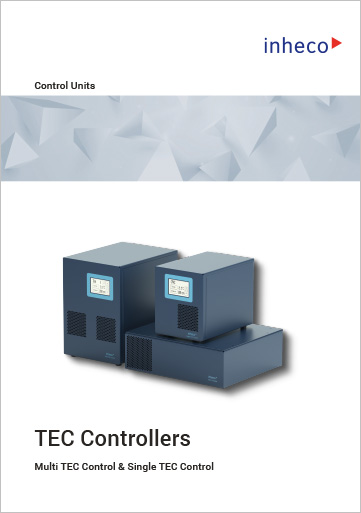

Controller Brochure (PDF)
Inheco

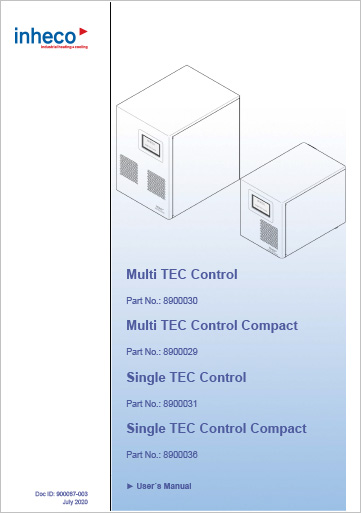

Controller Manual (PDF)
Inheco

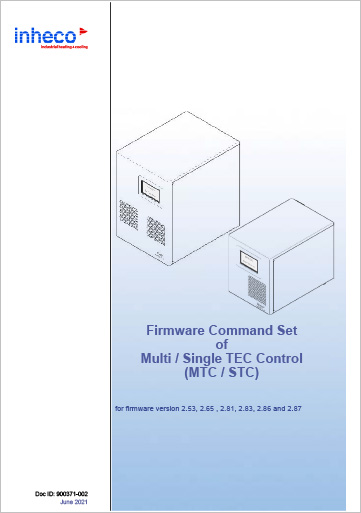

Controller Firmware Command Set (PDF)
Inheco

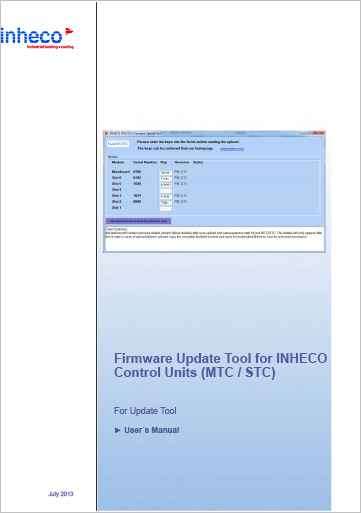

Controller Firmware Update Tool (PDF)
Inheco

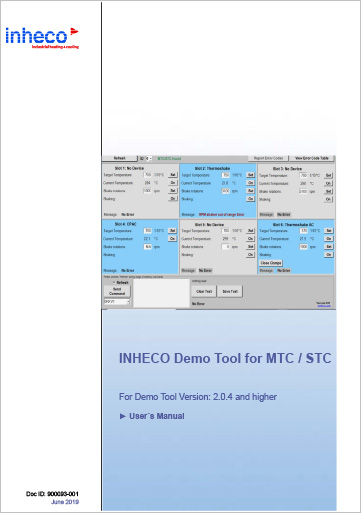

Controller Demotool Manual (PDF)

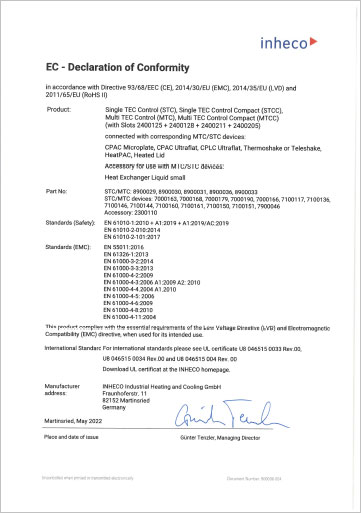

InhecoController EC Decleration (PDF)

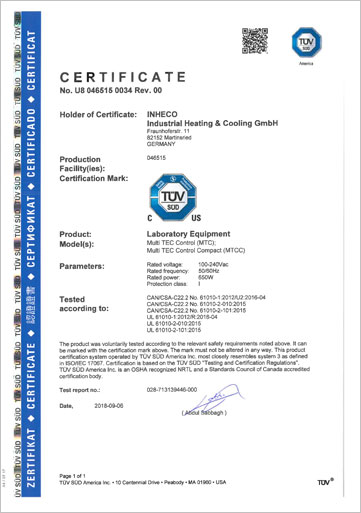

InhecoMTC UL Certificate (PDF)

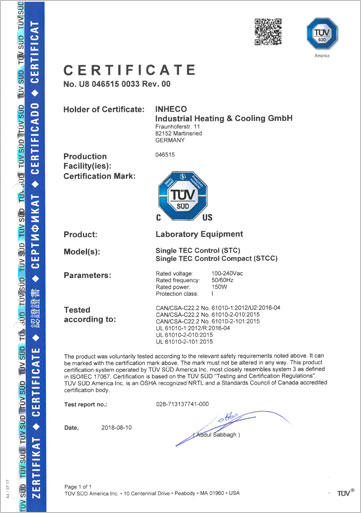

InhecoSTC UL Certificate (PDF)
Inheco
Production facility inspection (PDF)

Technical Specifications TEC Controller

Multi TEC Control Unit 8900030 8900029
Slot modules Max. 6  units can be installed
Sensor PT100
Dimensions:
Length 255 mm (10.04 in) 261.5 mm (10.29 in)
Width 185 mm (7.28 in) 300.0 mm (11,81 in)
Height 260 mm (10.24 in) 99.5 mm (3,92 in)

Weight (including cables) ~ 5.8 kg (~ 12.79 lbs)
Input voltage 100 to 240 V/AC, ±10%, Safety Class 1
Fuse T 6.3 A (time lag)
Interface USB 1.1 or 2.0
Protection category IP22
EMV protection class Group 1 / class A (industrial requirements)
Power frequency 50/60 Hz, ±5%
Power 650 W
Acoustic noise About 50 dB (A)
MTC control type PID, separate parameter sets for cooling and heating mode

Single TEC Control Units 8900031 and 8900036
Slot modules 1 unit can be installed
Sensor type PT100
Dimensions:
Length 230 mm (9.06 in)
Width 145 mm (5.71 in)
Height 177 mm (6.97 in)

Weight (including cables) ~ 5.8 kg (~ 12.79 lbs)
Weight (including cables) ~ 3.3 kg (~ 7.28 lbs)
Input voltage 100 to 240 V/AC, ±10%, Safety Class 1
Fuse T 2.0 A (time lag)
Interface USB
Protection category IP22
Power frequency 50/60 Hz, ±5%
Power 150 W
Acoustic noise About 45 dB(A)
STC control type PID, separate parameter sets for cooling and heating mode

Environmental conditions (Multi TEC control unit, Single TEC control unit)
Max. relative humidity:
Operation 75%
Transportation and storage 80%
Temperature limits:
Operation +15 °C to +32 °C [+59 °F to 90 °F]
Transportation and storage -10 °C to +60 °C [+14 °F to 140 °F]
