Inheco TEC Controllers and Slot Modules
Control and connect your Inheco instruments

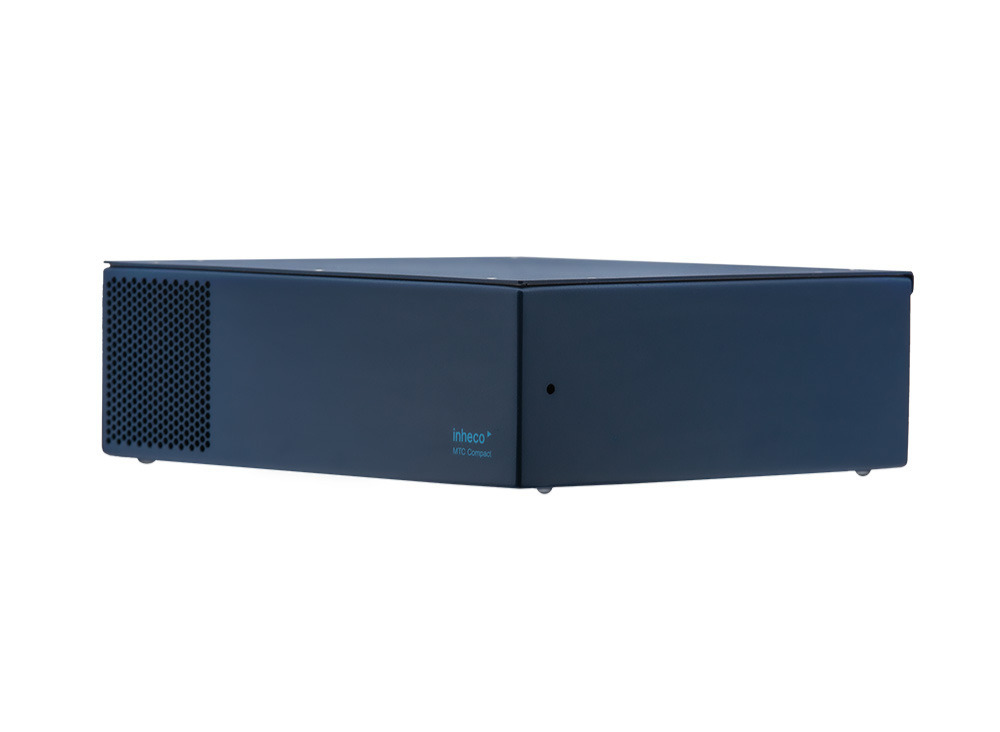

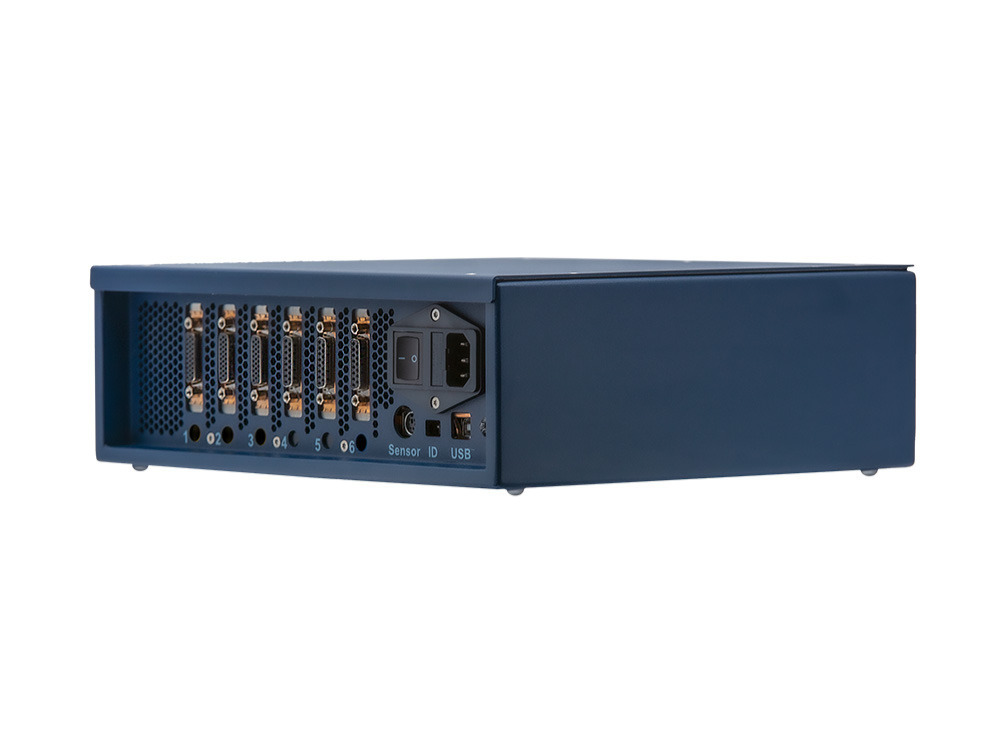

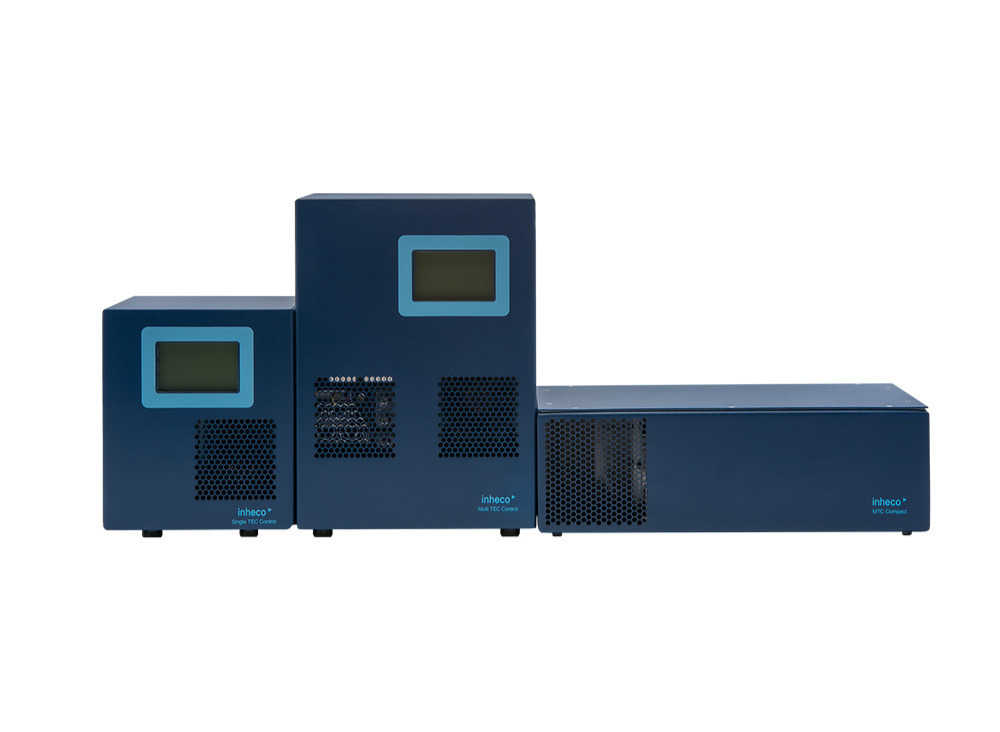

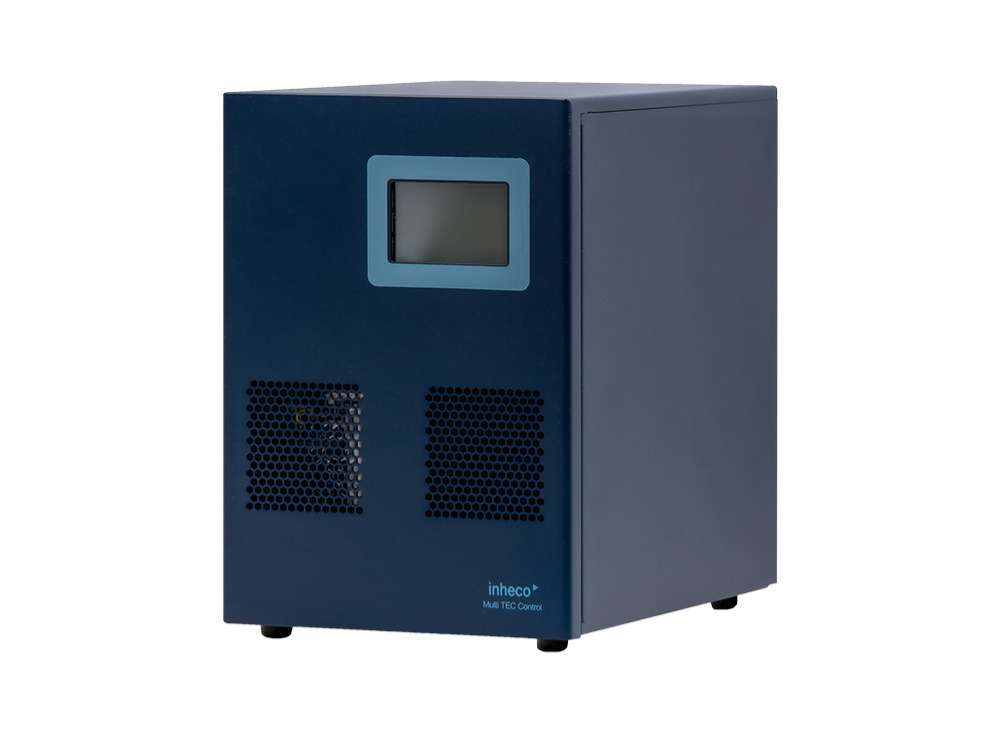

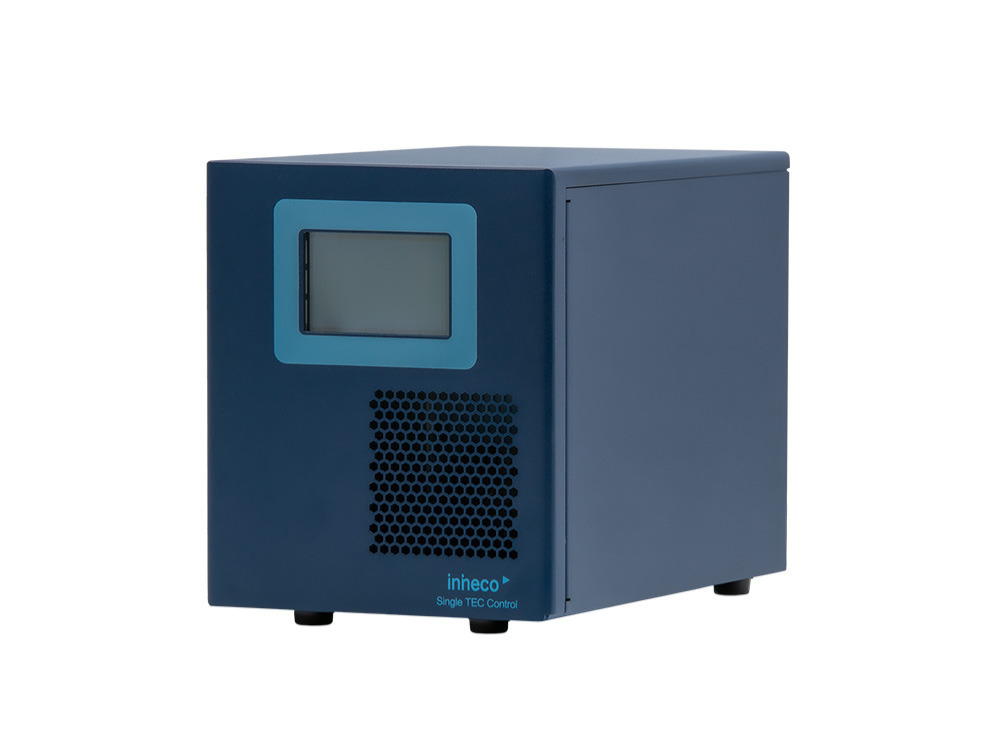

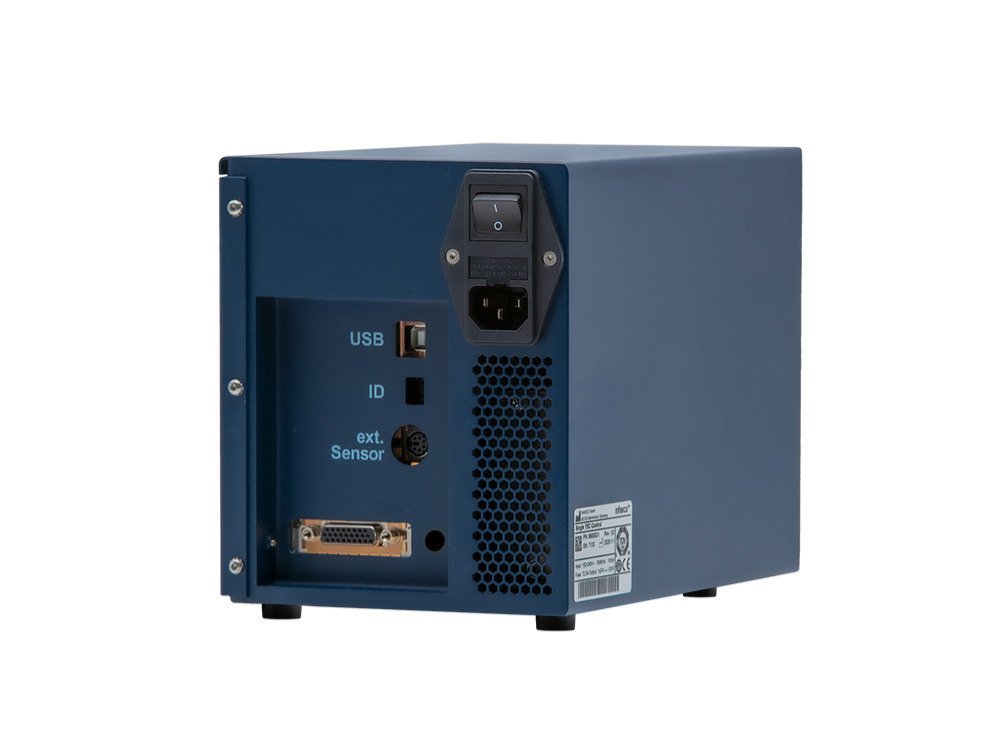

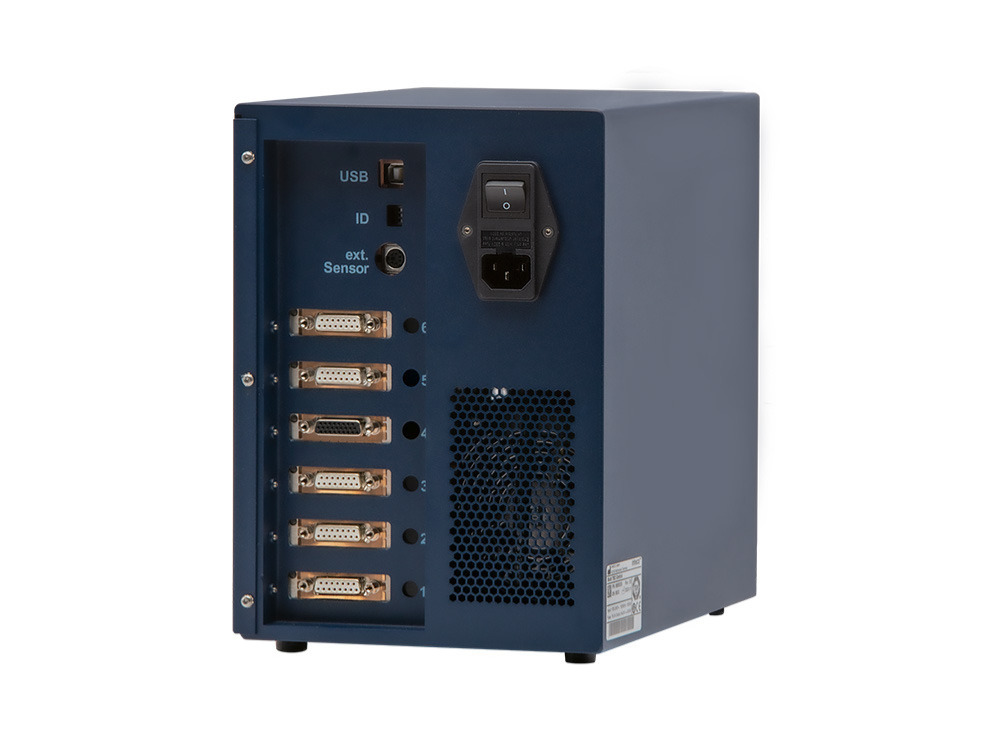

Inheco TEC control units and the respective slot modules provide reliable control and power for Inheco on-deck heating, cooling, and shaking instruments in one compact solution. Supporting up to six instruments in parallel, they offer precise control of temperature and shaking, while also monitoring ambient conditions.Available in Single TEC Control (STC), Multi TEC Control (MTC), and space-saving MTC Compact versions, all units are designed to sit off the workflow - freeing up workspace while reducing noise and heat. With ready-to-use APIs, drivers, and intuitive interfaces, they enable seamless integration into automated liquid handling systems or standalone operation for flexible lab workflows.
Easy Integration into robotic workflows
- USB HID communication interface
- Software and application programming interface (API) available
- free Software for standalone operation
Performance
- Controller for single unit (STC) and multiple units (up to 6 units) (MTC) available
- reduce waste heat in the workflow as Controllers are installed outside the workflow
- MTC is a cost-effective solution when two or more instruments in the workflow ed to be controlled
Features:
- Touch Screen for manual setting of temperature and shaking parameters and operation of the connected instruments
- Built-in power supply
- designed, engineered and made in Germany, rigorous quality control
- global two-year warranty and full customer service including remote support, diagnostic and servicing options
Technical Specifications TEC Controller
| Multi TEC Control Unit | 8900030 | 8900029 |
|---|---|---|
| Slot modules | Max. 6 units can be installed | |
| Sensor | PT100 | |
| Dimensions: | ||
| Length | 255 mm (10.04 in) | 261.5 mm (10.29 in) |
| Width | 185 mm (7.28 in) | 300.0 mm (11,81 in) |
| Height | 260 mm (10.24 in) | 99.5 mm (3,92 in) |
| Weight (including cables) | ~ 5.8 kg (~ 12.79 lbs) | |
| Input voltage | 100 to 240 V/AC, ±10%, Safety Class 1 | |
| Fuse | T 6.3 A (time lag) | |
| Interface | USB 1.1 or 2.0 | |
| Protection category | IP22 | |
| EMV protection class | Group 1 / class A (industrial requirements) | |
| Power frequency | 50/60 Hz, ±5% | |
| Power | 650 W | |
| Acoustic noise | About 50 dB (A) | |
| MTC control type | PID, separate parameter sets for cooling and heating mode | |
| Single TEC Control Units 8900031 and 8900036 | |
|---|---|
| Slot modules | 1 unit can be installed |
| Sensor type | PT100 |
| Dimensions: | |
| Length | 230 mm (9.06 in) |
| Width | 145 mm (5.71 in) |
| Height | 177 mm (6.97 in) |
| Weight (including cables) | ~ 5.8 kg (~ 12.79 lbs) |
| Weight (including cables) | ~ 3.3 kg (~ 7.28 lbs) |
| Input voltage | 100 to 240 V/AC, ±10%, Safety Class 1 |
| Fuse | T 2.0 A (time lag) |
| Interface | USB |
| Protection category | IP22 |
| Power frequency | 50/60 Hz, ±5% |
| Power | 150 W |
| Acoustic noise | About 45 dB(A) |
| STC control type | PID, separate parameter sets for cooling and heating mode |
| Environmental conditions (Multi TEC control unit, Single TEC control unit) | |
|---|---|
| Max. relative humidity: | |
| Operation | 75% |
| Transportation and storage | 80% |
| Temperature limits: | |
| Operation | +15 °C to +32 °C [+59 °F to 90 °F] |
| Transportation and storage | -10 °C to +60 °C [+14 °F to 140 °F] |
